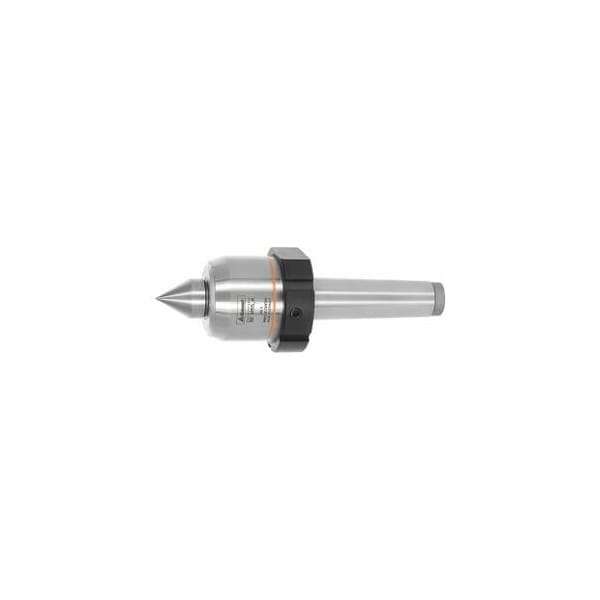

Revolving Lathe Center 60 Deg, Morse Taper: 4

Point angle 60 Deg. With extended Center and draw-off nut, specially for CNC machines. Complete tool hardened and ground. Special roller bearings for high loads and speeds. Live Center through hardened, can be reground many times. Maintenance-free due to lifetime lubrication. Special seal prevents ingress of dirt and coolant. Description: Lathe Centers are mainly used on lathes to support long and slim workpieces, since with these workpieces there would otherwise be a risk of the workpiece bending or moving around as a result of the forces generated. The lathe Center is secured with a Morse taper. The workpiece is clamped in the chuck and a counterbore is added using a Center drill. After re-clamping, the lathe Center is then inserted. Application: For high loads and speeds, specially for NC machines. Note: Draw-off nut for NC machines to remove tip from tailstock sleeve. Body Dia D: 60 mm Reach B: 106 mm largest Center point Dia 60 Deg A: 28 mm maximum radial run-out: 0.003 mm Center point length C: 35 mm maximum speed: 10000 min-1
