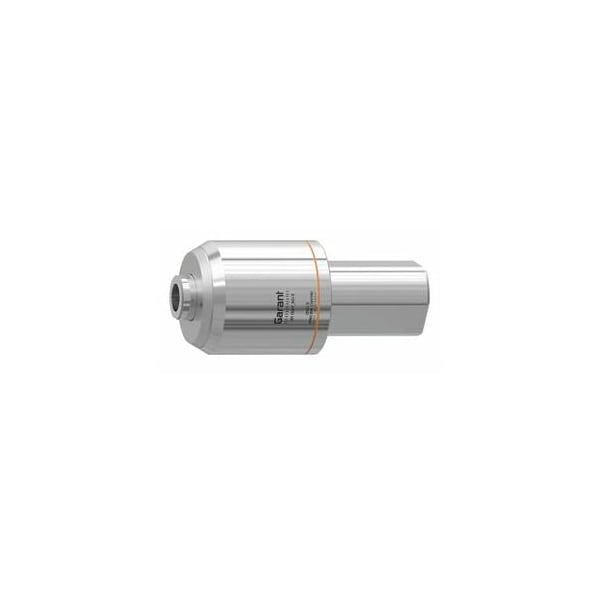

Revolving Lathe Center for Insert, Type: 50/3

Sprung version for axial length compensation whilst machining. Fully hardened and ground. Maintenance-free due to lifetime lubrication. Special seal prevents ingress of dirt and coolant. Special version with triangular shank for clamping directly in the heavy-duty chuck of the counter-spindle. Exchangeable inserts No. 320629. For machining heavy components. Description: Lathe Centers are mainly used on lathes to support long and slim workpieces, since with these workpieces there would otherwise be a risk of the workpiece bending or moving around as a result of the forces generated. The lathe Center is secured with a Morse taper. The workpiece is clamped in the chuck and a counterbore is added using a Center drill. After re-clamping, the lathe Center is then inserted. Application: Flexible application thanks to exchangeable inserts. For general use on turrets and counter-spindles on CNC machines. Optional extras: Exchangeable inserts No. 320625. Note: Changing the inserts in the key surfaces by counter-rotation. Adapter: Triangular shank Body Dia D: 74 mm Shank Dia D1: 18 mm for workpiece weight: 700 kg Overall length L: 165 mm Reach L1: 95 mm
