Revolving Lathe Center with Inserts, Morse Taper: 2

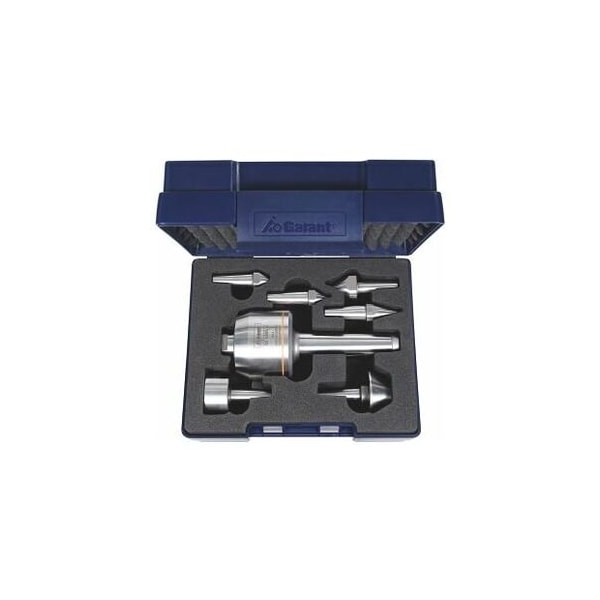

Complete tool hardened and ground. With interchangeable inserts. Body and live Center are die-forged and hardened. Precision roller bearings guarantee high concentricity. Special seal prevents ingress of dirt and coolant. Maintenance-free due to lifetime lubrication. Description: Lathe Centers are mainly used on lathes to support long and slim workpieces, since with these workpieces there would otherwise be a risk of the workpiece bending or moving around as a result of the forces generated. The lathe Center is secured with a Morse taper. The workpiece is clamped in the chuck and a counterbore is added using a Center drill. After re-clamping, the lathe Center is then inserted. Application: Suitable for one-off production of various components due to 6 different inserts. Supplied with: 1 lathe Center No. 320659, 1x each copying punch 60 Deg / 30 Deg, small Center punch 60 Deg, large Center punch 60 Deg, point 60 Deg, hollow point 60 Deg, hollow punch 60 Deg. With modular box with foam inlay. Optional extras: Exchangeable inserts No. 320625 320631 Body Dia D: 45 mm maximum radial run-out: 0.005 mm maximum speed: 5000 min-1 for workpiece weight: 50 kg Length 1: 43 mm L2: 10 mm
