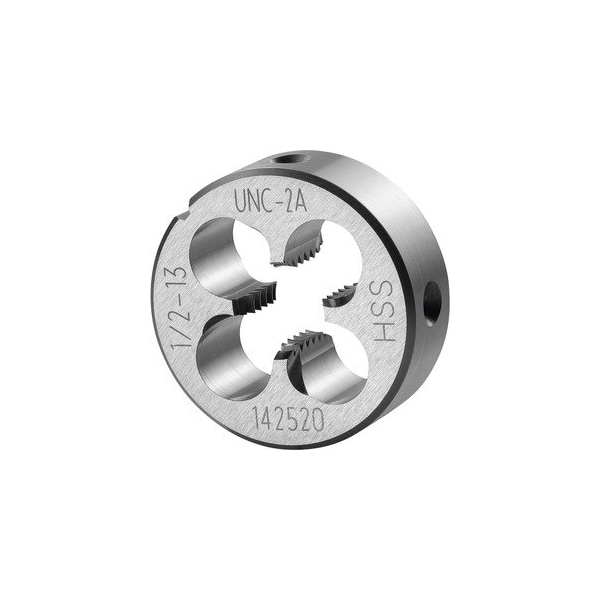

Round Die, HSS, 1/2-13
Mfr # 142520 1/2-13
Zoro # G811460779
product price: $68.15
/eaKey Features
Die Shape
Round
Thread Type
UNC Metric
Die Material
High Speed Steel
Thread Direction
right-hand
Tap Thread Size
1/2/2013
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
142520 1/2-13
Zoro #
G811460779
UPC #
-
Country of Origin
Germany
Dimensions
Die Thread Size
1/2"-13
Tap Thread Size
1/2/2013
Outside Dia. (In.)
38 mm
Height
14 mm
Thread Dia.
12.7 mm
Details
Item
Die
Die Shape
Round
Thread Type
UNC Metric
Die Material
High Speed Steel
Thread Direction
right-hand
Standards
EN 22568
Threads per in.
13
Tolerance Class
2A
Flank Angle
60°
Description
Round Die, HSS, 1/2-13. Version: Closed- pre-slit form- with tapered lead chamfer on both sides for easy start to the threading action and clean swarf evacuation in the direction of cutting. 1 3/4 turns lead chamfer. Application: For UNC uniform coarse threads ASME - B1.1. Tolerance class: 2A Threads per inch: 13 Thread Dia: 12.7 mm External Dia: 38 mm Height: 14 mm
