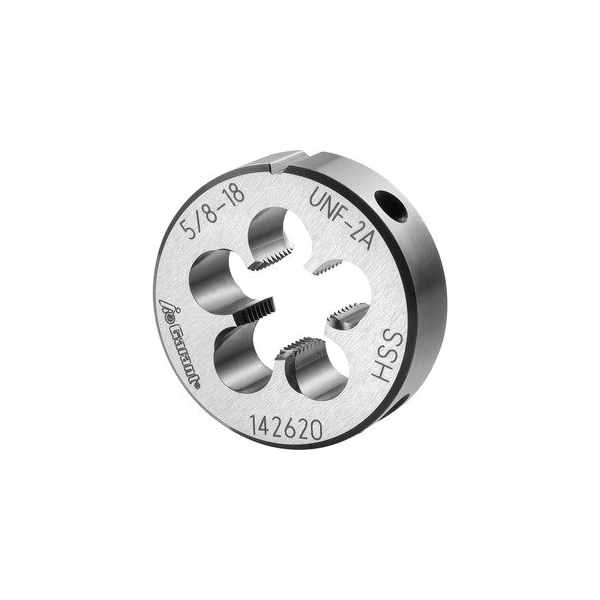

Round Die, HSS, 5/8-18
Mfr # 142620 5/8-18
Zoro # G711460688
product price:Â
$
66.89
/ea
Key Features
Die Shape
Round
Thread Type
UNF Metric
Die Material
High Speed Steel
Thread Direction
right-hand
Outside Dia. (In.)
45 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 142620 5/8-18
- Zoro #
- G711460688
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Die Thread Size
- 5/8"-18
- Outside Dia. (In.)
- 45 mm
- Tap Thread Size
- 5/8/2018
- Height
- 14 mm
- Thread Size
- 5/8-18 UNF
- Thread Dia.
- 15.88 mm
Details
- Item
- Die
- Die Shape
- Round
- Thread Type
- UNF Metric
- Die Material
- High Speed Steel
- Thread Direction
- right-hand
- Standards
- EN 22568
- Threads per in.
- 18
- Tolerance Class
- 2A
- Flank Angle
- 60°
Description
Round Die, HSS, 5/8-18. Version: Closed- pre-slit form- with tapered lead chamfer on both sides for easy start to the threading action and clean swarf evacuation in the direction of cutting. 1 3/4 turns lead chamfer. Application: For UNF uniform fine threads ASME - B1.1. Tolerance class: 2A Threads per inch: 18 Thread Dia: 15.88 mm External Dia: 45 mm Height: 14 mm
