Garant

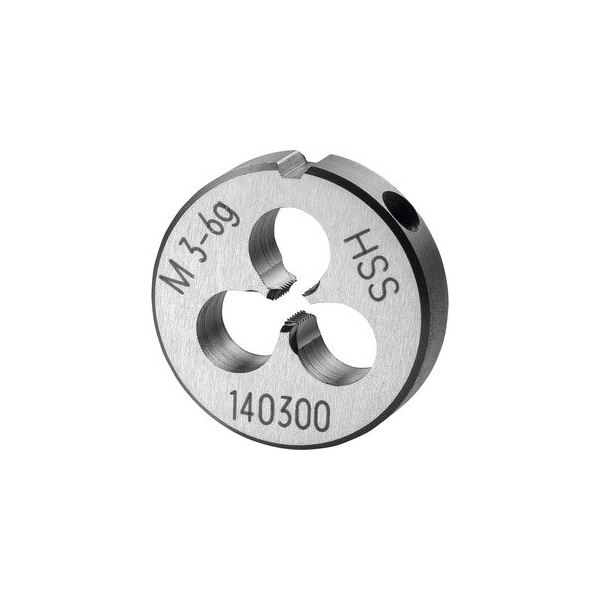

Round Die, HSS, M3X0.5

product price: $32.39
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Die Shape Round
  • Thread Type M Metric
  • Die Thread Size M3x0.50
  • Die Material High Speed Steel
  • Thread Direction right-hand
See all product information

Product Information

Dimensions

Die Thread Size M3x0.50
Outside Dia. (In.) 20 mm
Tap Thread Size M3
Height 5 mm
Thread Size M3

Details

Item Die
Die Shape Round
Thread Type M Metric
Die Material High Speed Steel
Thread Direction right-hand
Standards EN 22568
Pitch 0.5 mm
Flank Angle 60°
Tolerance Class DIN 13 6g

Description

Round Die, HSS, M3X0.5. Version: Closed- pre-slit form. M3 with tapered lead chamfer on both sides for easy start to the threading action and clean swarf evacuation in the direction of cutting. 1 3/4 turns lead chamfer. Cutting direction: right-hand Tolerance class: DIN 13 6g Pitch: 0.5 mm External Dia: 20 mm Height: 5 mm
