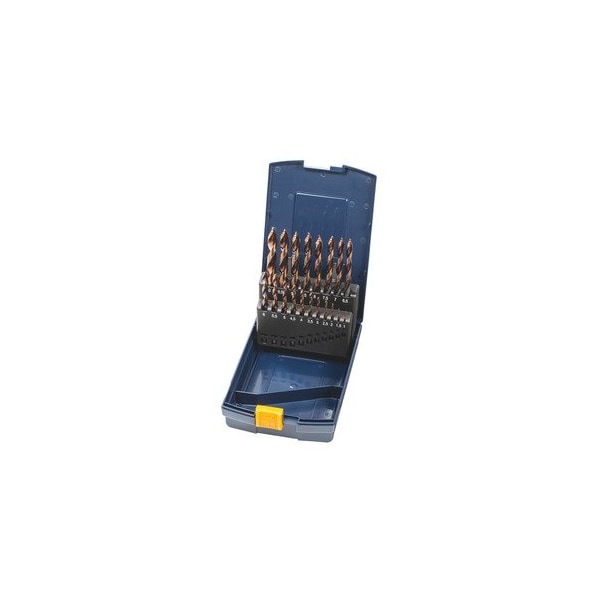

Set of HSS Jobber Drills with Stepped Tip for Plastic, Wood and Acrylic - 1-10.5 mm
Mfr # 114014 1-10,5
Zoro # G911460600
product price:Â
$
188.99
/ea
Free Shipping & Returns
Key Features
Drill Bit Point Angle
118 Degrees
Material
HSS
Finish
uncoated
Number of Flutes
2
Standards
DIN 338
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 114014 1-10,5
- Zoro #
- G911460600
- UPC #
- -
- Country of Origin
- Germany
- Item
- Jobber drill
- Drill Bit Point Angle
- 118 Degrees
- Material
- HSS
- Finish
- uncoated
- Number of Flutes
- 2
- Standards
- DIN 338
- Number of Pieces
- 24
- Type
- N
- Color Ring
- Without
- Drill Range
- 1 mm
Description
Set of HSS Jobber Drills with Stepped Tip for Plastic, Wood and Acrylic - 1-10.5 mm. Version: Composed of jobber drills DIN 338. Chamfers are nitrided. Particularly sturdy and robust due to the strengthened core diameter. Ground flutes- with high concentricity. Precision ground point. Three drive flats on the shank for use in a 3-jaw chuck. - Ideal for producing precise holes in sheet metal- pipes- and profiles. - Reliable spot drilling without centering or center punching - even on curved surfaces - thanks to innovative ground point. - Oblique spot drilling after the first level of the drill tip has penetrated into the material without any problems. - Drilling with significantly less force required than with conventional DIN338 HSS drills - up to a diameter of 13 mm directly in the cordless drill/driver. - Stable and secure form fit in the 3-jaw chuck. - General use across a wide spectrum of materials including plastic- wood and acrylic without tearing or splintering. - The drill does not rattle or dig in - even in the case of thin-walled materials. - Burr-free drill exit. - Ideal for drilling out bolts and rivets. Additionally with intermediate sizes for tapping drill holes Dia 3.3- 4.2- 6.8 and 10.2 mm. Note: Dia 1 - 3.5 mm: Drills with plain shank- without drive flats. Through-coolant: no Number of cutting edges Z: 2 Drill range: 1 - 10.5 mm Number of drills: 24 Tapping hole Dia: 3.3- 4.2- 6.8- 10.2 mm Incremental steps of drills: 0.5 mm
