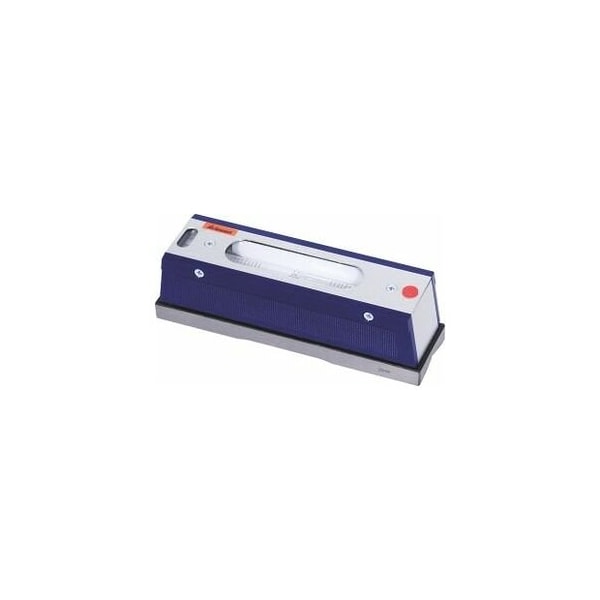

Shaft Spirit Level, Adjustable Vial, Base Length/Accuracy: 200/1 mm
Mfr # 468790 200/1
Zoro # G314555491
product price:Â $579.99
/ea
Free Shipping & Returns
Key Features
Sole Length
200 mm
Standard
DIN 877
Packaging
Sturdy Box
Accuracy Class
1
Sole Width
40 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
468790 200/1
Zoro #
G314555491
UPC #
-
Country of Origin
Germany
Dimensions
Length
200 mm
Sole Length
200 mm
Sole Width
40 mm
Details
Item
Spirit Level
Standard
DIN 877
Packaging
Sturdy Box
Accuracy Class
1
Scale Divisions
0.02 mm/m
Description
Sturdy housing of high quality special casting, Vee base with ground contact surfaces in the angle important for marking out, aligning, etc.. All measuring faces are exactly parallel to the axis of the vial. One longitudinal and one transverse vial each of glass. With insulated handles on the housing and protective glass over the vials. Adjustment of the longitudinal vial: An adjustment screw allows the longitudinal vial to be reset to the 0 position easily and without play, with no need for disassembly. Callout: Adjustment screw for the longitudinal vial. Longitudinal vial is mounted load-free on bearings. Application: For aligning surfaces, shafts, machines etc. Standard: DIN 877 Accuracy: 1 = with very high sensitivity longitudinal vial 0.02 mm/m. 2 = with high sensitivity longitudinal vial 0.1 mm/m. 4 = with normal sensitivity longitudinal vial 0.4 mm/m.
