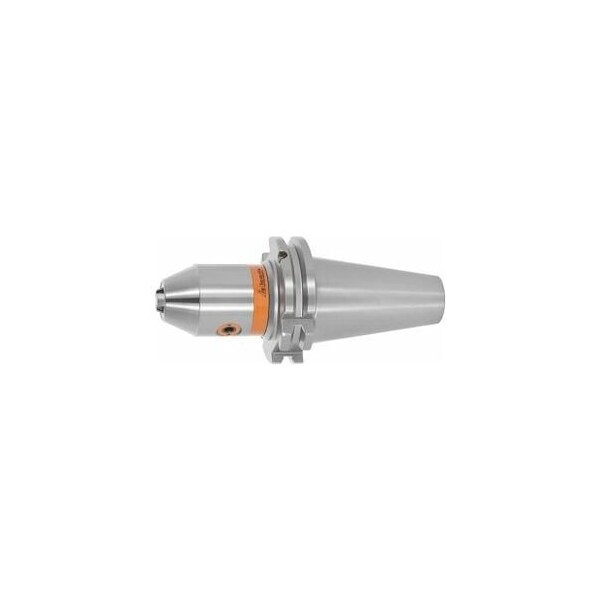

Short Drill Chuck, Form AD/B, SK 40, Clamping Range: 0.3-10mm
Mfr # 301465 0,3-10
Zoro # G614775216
product price:Â
$
486.99
/ea
Free Shipping & Returns
Key Features
Concentricity
≤ 20 µm
Clamping Dia.
0.3 mm
Max. Tightening Torque
≤ 14 N·m
Outside Dia.
38 mm
Spare Chuck Key No. 627425
4 AF
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 301465 0,3-10
- Zoro #
- G614775216
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Clamping Dia.
- 0.3 mm
- Outside Dia.
- 38 mm
- Taper Size
- SK40
Details
- Item
- Short drill chuck
- Concentricity
- ≤ 20 µm
- Max. Tightening Torque
- ≤ 14 N·m
- Spare Chuck Key No. 627425
- 4 AF
- Type
- slim
- Balance Quality
- G 2.5 at 25,000 rpm
- Standards
- ISO 7388-1
- Projection
- 73 mm
- Shape
- ADB
- Coolant Through
- Yes, With Max. 50 Bar
Description
For clockwise and anticlockwise rotation. With Balluff/RFID chip bore. Maximum radial run-out 20 um. Glass bead blasted. Slim design for the most popular Dia up to 10.2 mm. Supplied with: Clamping wrench with T-handle. Optional extras: Pull studs PS No. 308600 308806. Pull stud wrenches No. 308820, 308835. maximum tightening torque Md max: 14 Nm Type: slim Overhang dimension A: 73 mm External Dia D: 38 mm Spare chuck key No. 627425: 4 AF
