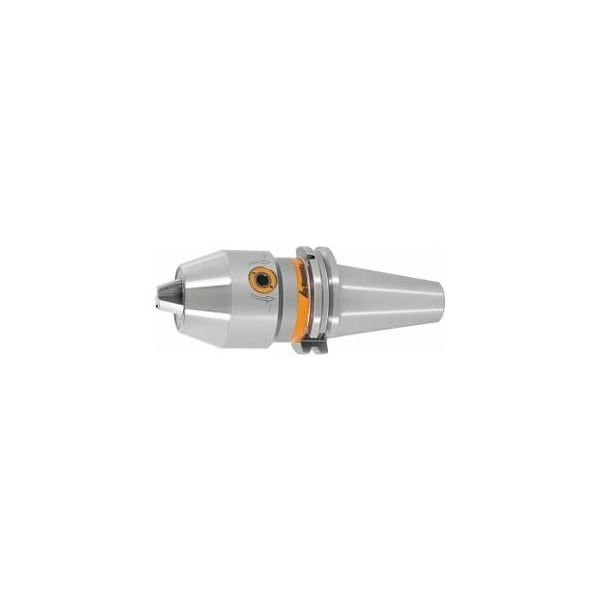

Short Drill Chuck, Form AD/B, SK50, Clamping range: 0.5 mm to 16 mm
Mfr # 301467 0,5-16
Zoro # G014775175
product price:Â
$
631.99
/ea
Free Shipping & Returns
Key Features
Projection
106 mm
Outside Dia.
57 mm
Clamping Dia.
0.5 mm
Concentricity
≤ 20 µm
Spare Chuck Key No. 627425
SW 6
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 301467 0,5-16
- Zoro #
- G014775175
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Outside Dia.
- 57 mm
- Clamping Dia.
- 0.5 mm
- Taper Size
- SK50
Details
- Item
- Short drill chuck
- Projection
- 106 mm
- Concentricity
- ≤ 20 µm
- Spare Chuck Key No. 627425
- SW 6
- Balance Quality
- G 2.5 at 18,000 rpm
- Shape
- ADB
- Type
- Standard
- Max. Tightening Torque
- ≤ 14 N·m
- Standards
- ISO 7388-1
- Coolant Through
- Yes, With Max. 50 Bar
Description
For clockwise and anticlockwise rotation. With Balluff/RFID chip bore. Maximum radial run-out 20 um. Glass bead blasted. Supplied with: Clamping wrench with T-handle. Optional extras: Pull studs PS No. 308600 308806. Pull stud wrenches No. 308820, 308835. maximum tightening torque Md max: 14 Nm Type: Standard Overhang dimension A: 106 mm External Dia D: 57 mm Spare chuck key No. 627425: SW 6
