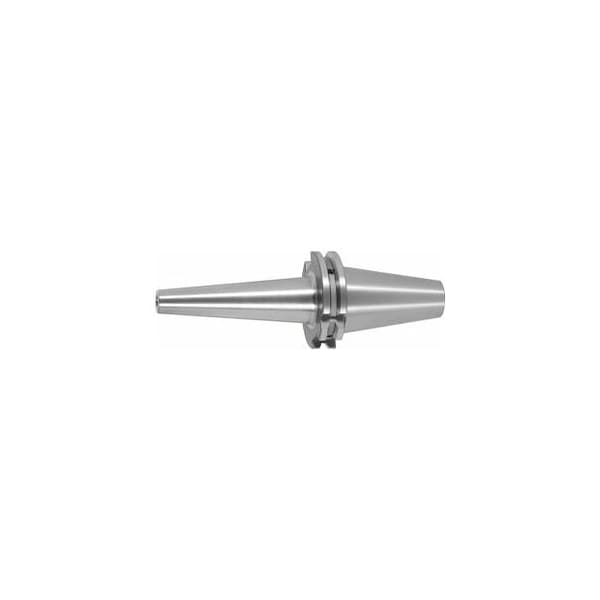

Shrink-fit Holder, Slim, SK 40, Projection: 160, Clamping Range: 3mm
Mfr # 302333 3
Zoro # G314774038
product price: $409.99
/ea
Free Shipping & Returns
Key Features
Taper Size
SK40
Clamping Dia.
3 mm
Standards
ISO 7388-1
Concentricity
≤ 3 µm
Shape
ADB
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
302333 3
Zoro #
G314774038
UPC #
-
Country of Origin
Germany
Dimensions
Taper Size
SK40
Clamping Dia.
3 mm
External Dia.
25 mm
Dia.
9 mm
Details
Standards
ISO 7388-1
Concentricity
≤ 3 µm
Shape
ADB
Item
Shrink-fit chuck
Projection
160 mm
Balance Quality
G 2.5 at 25,000 rpm
Description
All shanks hard turned for smooth running!. With RFID / Balluffchip bore. Integral tool length adjustment, range 10 mm available only from size 6 upwards! Extra slim designreduced interference contour. Application: Cutting operations in tool and mould making. For clamping tools with parallel shank to h6 tolerance. Optional extras: Pull studs PS No. 308600 308806. PS wrenches No. 308820 - 308835, Shrink-fit holder extensions No. 302410 302419. Shrink-fitting units No. 354210 354450. Machining strategy: HPC Clamping Dia D1: 3 mm Overhang dimension A: 160 mm External Dia D: 25 mm Dia D2: 9 mm
