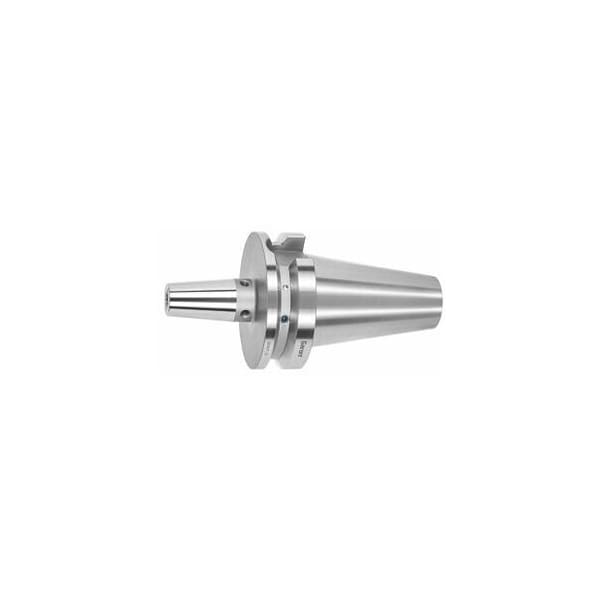

Shrink-fit Holder with Cooling Channel Bore, Form ADB, BT 50, Projection: 100, Clamping Dia: 8mm
Mfr # 303437 8
Zoro # G914773585
product price:Â
$
377.99
/ea
Free Shipping & Returns
Key Features
Taper Size
BT50
Clamping Dia.
8 mm
Concentricity
≤ 3 µm
Balance Quality
G 2.5 at 25,000 rpm
Shape
ADB
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 303437 8
- Zoro #
- G914773585
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Taper Size
- BT50
- Clamping Dia.
- 8 mm
- Dia.
- 21 mm
- External Dia.
- 27 mm
Details
- Item
- Shrink-fit chuck
- Concentricity
- ≤ 3 µm
- Balance Quality
- G 2.5 at 25,000 rpm
- Shape
- ADB
- Projection
- 100 mm
Description
Integral tool length adjustment, range 10 mm from Dia 6. Size 3-5 for carbide, from size 6 for HSS and carbide. Application: For clamping tools with parallel shank to h6 tolerance. Standard: Ahnlich E-DIN 69882-8, Form G. Optional extras: Pull studs PS, No. 308760 308806, Shrink-fit holder extension No. 302410 302417, shrink-fit units No. 354210 354400. Clamping Dia D1: 8 mm External Dia D: 27 mm Dia D2: 21 mm
