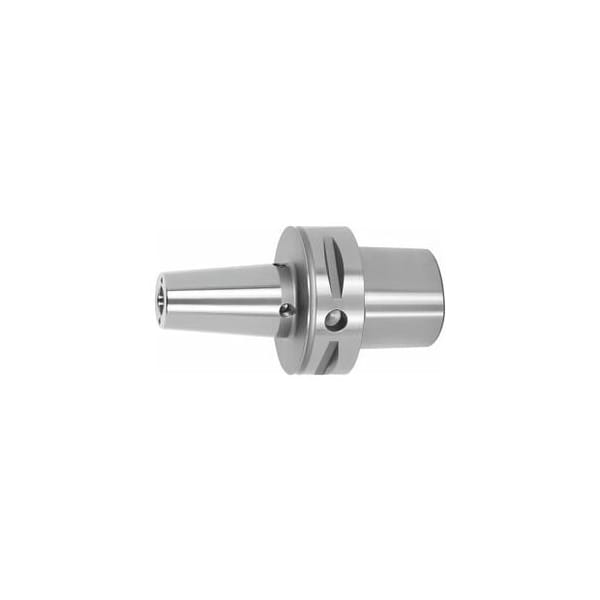

Shrink-fit Holder with Cooling Channel Bore, PSC 63 Short, Clamping Range: 10mm
Mfr # 308573 10
Zoro # G414774419
product price:Â
$
506.99
/ea
Free Shipping & Returns
Key Features
Taper Size
PSC63
Projection
80 mm
Coolant Fed
Yes
External Dia.
32 mm
Cooling Channel Bore
lockable
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 308573 10
- Zoro #
- G414774419
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Taper Size
- PSC63
- External Dia.
- 32 mm
- Clamping Dia.
- 10 mm
- Dia.
- 24 mm
Details
- Item
- Shrink-fit chuck
- Projection
- 80 mm
- Coolant Fed
- Yes
- Cooling Channel Bore
- lockable
- Concentricity
- ≤ 3 µm
- Balance Quality
- G 2.5 at 25,000 rpm
- Standards
- ISO 26623-1
Description
With RFID/Balluffchip bore. All shanks hard turned for smooth running!. Mating faces of the PSC internal contour machined. With coolant channel bores and threads that can be sealed. Application: For clamping tools with shank tolerance h6. Optional extras: Shrink-fit holder extensions No. 302410 302417. Shrink-fit units No. 354210 354450. Coolant tube No. 309885, socket No. 309893 and balancing screw set No. 309906 size 180. Machining strategy: HSC Cooling channel bore: lockable Clamping Dia D1: 10 mm Overhang dimension A: 80 mm External Dia D: 32 mm Dia D2: 24 mm
