Shop GARANT
See all product information

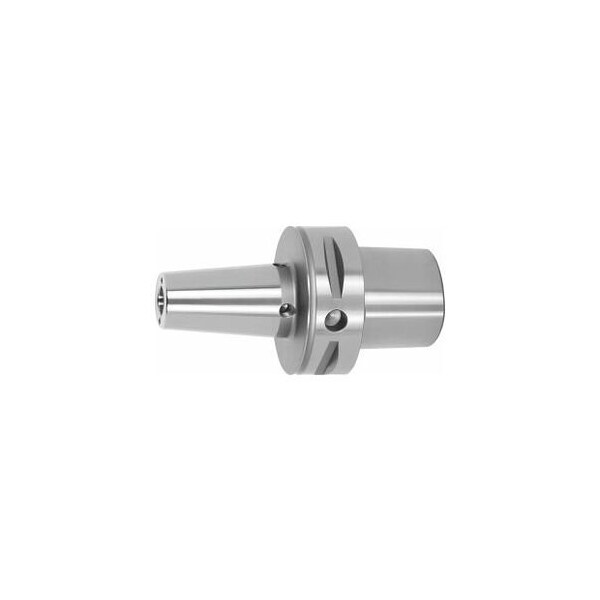

Shrink-fit Holder with Cooling Channel Bore, PSC 63 Short, Clamping Range: 20mm
Mfr # 308573 20
Zoro # G314774755
product price:Â $499.99
/ea
Free Shipping & Returns
Key Features
Projection
85 mm
Taper Size
PSC63
Coolant Fed
Yes
Dia.
33 mm
Clamping Dia.
20 mm
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- 308573 20
- Zoro #
- G314774755
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Taper Size
- PSC63
- Dia.
- 33 mm
- Clamping Dia.
- 20 mm
- External Dia.
- 42 mm
Details
- Item
- Shrink-fit chuck
- Projection
- 85 mm
- Coolant Fed
- Yes
- Cooling Channel Bore
- lockable
- Standards
- ISO 26623-1
- Balance Quality
- G 2.5 at 25,000 rpm
- Concentricity
- ≤ 3 µm
Description
With RFID/Balluffchip bore. All shanks hard turned for smooth running!. Mating faces of the PSC internal contour machined. With coolant channel bores and threads that can be sealed. Application: For clamping tools with shank tolerance h6. Optional extras: Shrink-fit holder extensions No. 302410 302417. Shrink-fit units No. 354210 354450. Coolant tube No. 309885, socket No. 309893 and balancing screw set No. 309906 size 180. Machining strategy: HSC Cooling channel bore: lockable Clamping Dia D1: 20 mm Overhang dimension A: 85 mm External Dia D: 42 mm Dia D2: 33 mm
