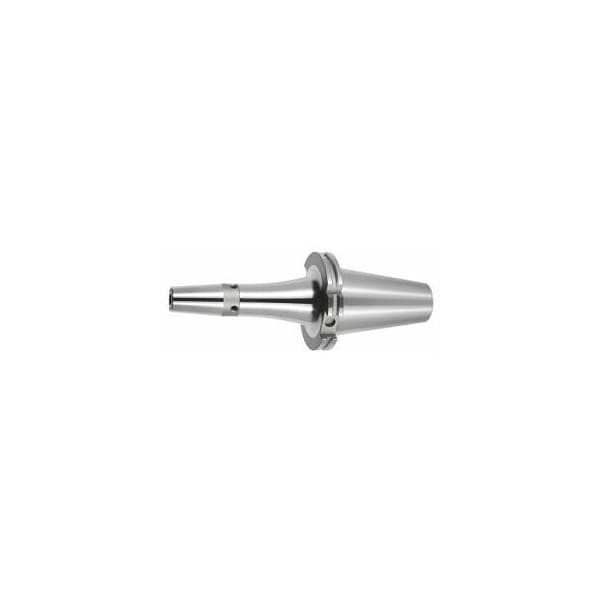

Shrink-fit Holder with Cooling Channel Bores, SK 50, Projection: 160, Clamping Range: 6mm
Mfr # 302313 6
Zoro # G514774227
product price: $450.99
/ea
Free Shipping & Returns
Key Features
Shape
ADB
Dia.
21 mm
External Dia.
27 mm
Projection
160 mm
Balance Quality
G 2.5 at 25,000 rpm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
302313 6
Zoro #
G514774227
UPC #
-
Country of Origin
Germany
Dimensions
Dia.
21 mm
External Dia.
27 mm
Taper Size
SK50
Clamping Dia.
6 mm
Details
Shape
ADB
Projection
160 mm
Item
Shrink-fit chuck
Balance Quality
G 2.5 at 25,000 rpm
Cooling Channel Bore
lockable
Concentricity
≤ 3 µm
Standards
ISO 7388-1
Description
High-temperature steel. Size 3-5 for carbide, from size 6 for HSS and carbide. All shanks hard turned for smooth running!. With RFID/Balluffchip bore. With coolant hole bores tapped for plugging. Coolant hole bores at clamping Dia D1: 3, 4 and 5 mm cannot be plugged. Application: For clamping tools with parallel shank to h6 tolerance. Suitable for inductive, contact, and hot-air shrink units. Optional extras: Pull studs PS No. 308600 308800. PS wrenches No. 308820 - 308835, Shrink-fit holder extensions No. 302410 302419. Shrink-fit units, accessories No. 354210 354450, balancing screws set No. 309906 size 180. Machining strategy: HPC Cooling channel bore: lockable Clamping Dia D1: 6 mm Overhang dimension A: 160 mm External Dia D: 27 mm Dia D2: 21 mm
