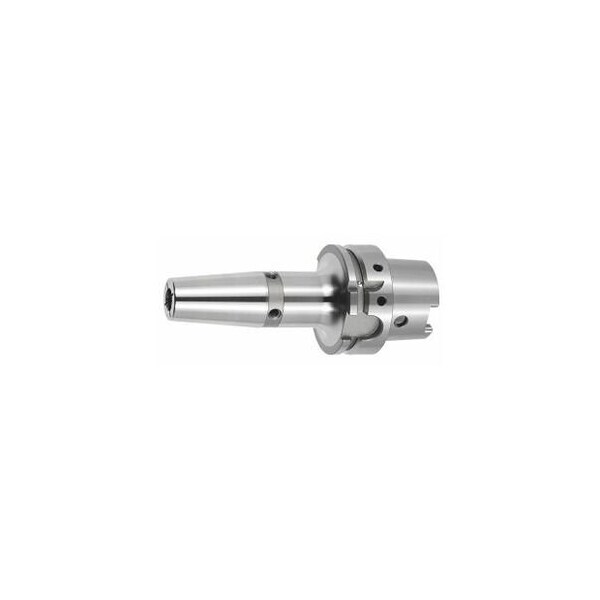

Shrink-fit Holder with Cooling Channel Slots, HSK-A 63 Short, Clamping Diameter: 4mm
Mfr # 308309 4
Zoro # G614774592
product price: $345.99
/ea
Free Shipping & Returns
Key Features
Taper Size
HSK63A
Projection
80 mm
Balance Quality
G 2.5 at 25,000 rpm
Clamping Dia.
4 mm
Cooling Channel Bore
Not Pluggable
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
308309 4
Zoro #
G614774592
UPC #
-
Country of Origin
Germany
Dimensions
Taper Size
HSK63A
Clamping Dia.
4 mm
Dia.
12 mm
External Dia.
17 mm
Details
Item
Shrink-fit chuck
Projection
80 mm
Balance Quality
G 2.5 at 25,000 rpm
Cooling Channel Bore
Not Pluggable
Concentricity
≤ 3 µm
Shape
A
Description
High-temperature steel. With 4 cooling channel slots on the clamping hole. All shanks hard turned for smooth running!. With RFID/Balluffchip bore. Advantage: Improved cooling directly on the tool shank. Facilitates the removal of small tool diameters. Application: For holding end mills and drills with parallel shank to h6 tolerance. Suitable for inductive, contact and hot air shrink-fitting units. Optional extras: Coolant feed pipe No. 309880. Plug-in socket No. 309890, Shrink-fit holder extension No. 302410 302416. Shrink-fit units No. 354210 304755. Cooling channel bore: not pluggable Clamping Dia D1: 4 mm Overhang dimension A: 80 mm External Dia D: 17 mm Dia D2: 12 mm
