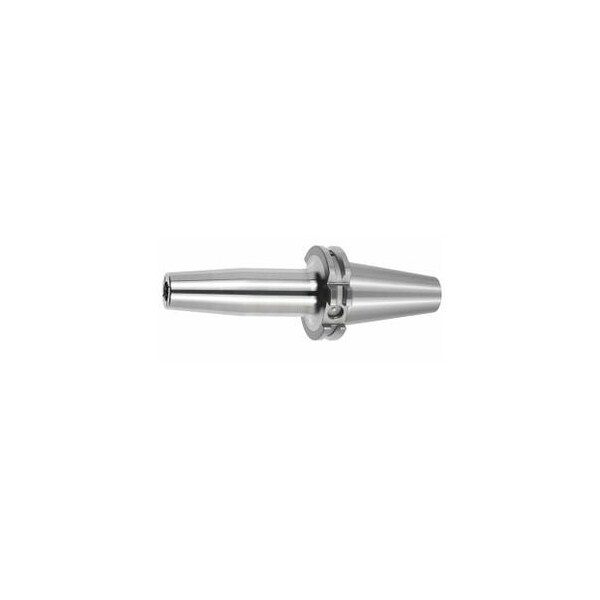

Shrink-fit Holder with Cooling Channel Slots, SK 40, Projection: 130, Clamping Diameter: 3mm
Mfr # 302364 3
Zoro # G314774403
product price: $378.99
/ea
Free Shipping & Returns
Key Features
Clamping Dia.
3 mm
Standards
ISO 7388-1
Cooling Channel Bore
Yes
Concentricity
≤ 3 µm
External Dia.
17 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
302364 3
Zoro #
G314774403
UPC #
-
Country of Origin
Germany
Dimensions
Clamping Dia.
3 mm
External Dia.
17 mm
Taper Size
SK40
Dia.
12 mm
Details
Item
Hydraulic chuck
Standards
ISO 7388-1
Cooling Channel Bore
Yes
Concentricity
≤ 3 µm
Balluffchip Bore
Yes
Projection
130 mm
Shape
ADB
Balance Quality
G 2.5 at 25,000 rpm
Description
High-temperature steel. With 4 cooling channel slots on the clamping hole. All shanks hard turned for smooth running!. With RFID/Balluffchip bore. Advantage: Improved cooling directly on the tool shank. Facilitates the removal of small tool diameters. Application: For holding end mills and drills with parallel shank to h6 tolerance. Suitable for inductive, contact and hot air shrink-fitting units. Optional extras: Pull studs PS No. 308600 308800, PS wrenches No. 308820 - 308835. Clamping Dia D1: 3 mm Dia D2: 12 mm External Dia D: 17 mm
