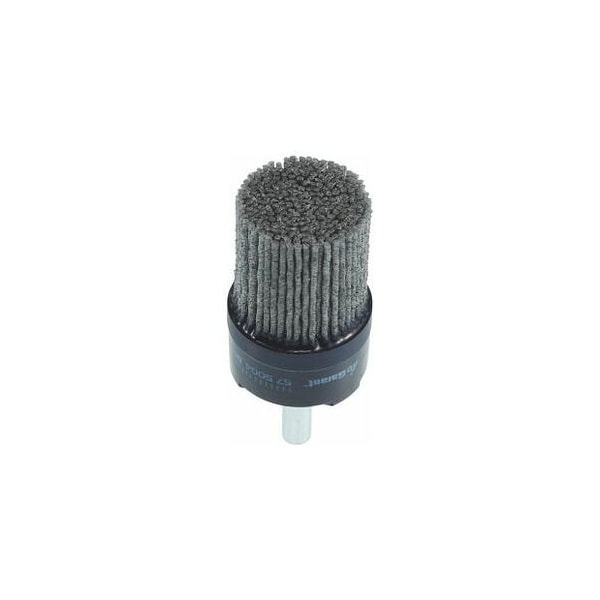

Silicon Carbide Disc Brush with Shank, 20 mm, Grit: 80
Mfr # 575002 80
Zoro # G714407994
product price:Â
$
34.69
/ea
Key Features
Abrasive Material
Silicon carbide (SiC)
Brush Dia.
20 mm
Diameter
24 mm
Infeed
0.3 (fine) – 2.0 (coarse) mm
Length of brush section H1
25 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 575002 80
- Zoro #
- G714407994
- UPC #
- -
- Country of Origin
- Bulgaria
Dimensions
- Brush Dia.
- 20 mm
- Diameter
- 24 mm
- Length of brush section H1
- 25 mm
- Working area Diameter
- 20 mm
- Bristle thickness
- 1.2 mm
- Shank Diameter
- 6 mm
Details
- Item
- Disc brush
- Abrasive Material
- Silicon carbide (SiC)
- Abrasive Grit
- 80
- Infeed
- 0.3 (fine) – 2.0 (coarse) mm
- Grit designation
- Coarse
- Feed
- 800-mm/min
- Recommended Speed
- 1500 RPM
- Maximum Speed
- 4500 RPM
Description
Disc brushes with extremely tightly packed abrasive bristles right to the edge of the brush embedded in the plastic pad. The bristles support each other, giving a highly stable shape. Very long working life. Nylon bristles with very high silicon carbide grit content for general-purpose use. 6 mm shank, solidly cast in place. Advantage: Workpiece post-processing directly after the machining process. Reproducible results due to continuous exposure of the abrasive grit. Process reliability thanks to high stability and accuracy of the shape. Quick and secure mounting without further accessories. Very high concentricity. Application: On CNC machining Centers and when used by robots, preferably wet grinding with cooling lubricant. Machining of flat components: precise deburring, edge rounding, finish machining after milling, surface finishing e.g. of sealing and mating faces. Note: Special versions available on request. Grinding medium code: SiC Length of brush section H1: 25 mm Shank Ds: 6 mm Grit designation: coarse Bristle thickness: 1.2 mm
