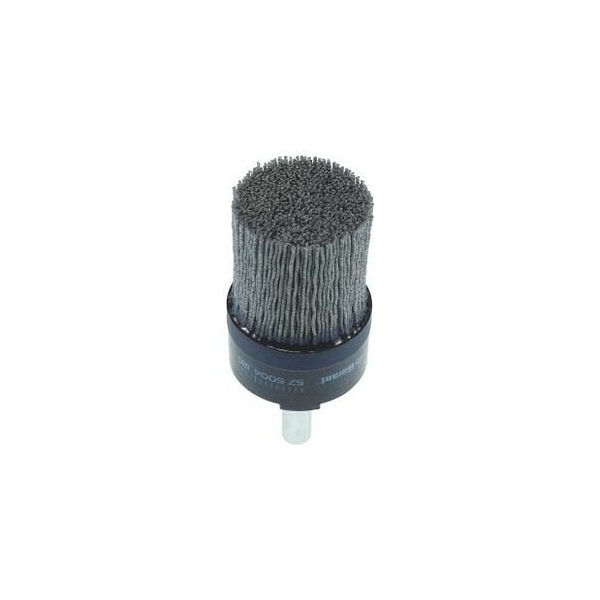

Silicon Carbide Disc Brush with Shank, 25 mm, Grit: 120
Mfr # 575004 120
Zoro # G714407987
product price: $35.15
/eaKey Features
Abrasive Material
Silicon carbide (SiC)
Brush Dia.
25 mm
Diameter
29 mm
Recommended Speed
1500 RPM
Working area Diameter
25 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
575004 120
Zoro #
G714407987
UPC #
-
Country of Origin
Bulgaria
Dimensions
Brush Dia.
25 mm
Diameter
29 mm
Working area Diameter
25 mm
Shank Diameter
6 mm
Length of brush section H1
25 mm
Bristle thickness
0.6 mm
Details
Item
Disc brush
Abrasive Material
Silicon carbide (SiC)
Abrasive Grit
120
Recommended Speed
1500 RPM
Infeed
0.3 (fine) – 2.0 (coarse) mm
Feed
800-mm/min
Grit designation
Medium
Maximum Speed
4500 RPM
Description
6 mm shank, solidly cast in place. Nylon bristles with very high silicon carbide grit content for general-purpose use. Disc brushes with extremely tightly packed abrasive bristles right to the edge of the brush embedded in the plastic pad. The bristles support each other, giving a highly stable shape. Very long working life. Advantage: Workpiece post-processing directly after the machining process. Reproducible results due to continuous exposure of the abrasive grit. Process reliability thanks to high stability and accuracy of the shape. Quick and secure mounting without further accessories. Very high concentricity. Application: On CNC machining Centers and when used by robots, preferably wet grinding with cooling lubricant. Machining of flat components: precise deburring, edge rounding, finish machining after milling, surface finishing e.g. of sealing and mating faces. Note: Special versions available on request. Grinding medium code: SiC Length of brush section H1: 25 mm Shank Ds: 6 mm Grit designation: medium Bristle thickness: 0.6 mm
