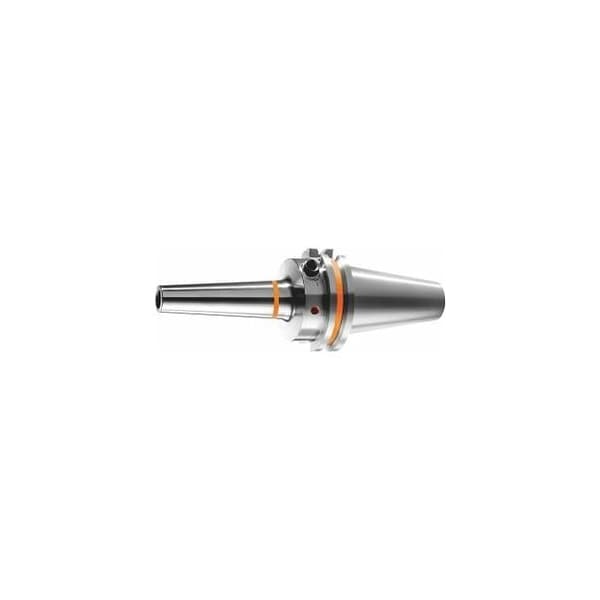

Slim Hydraulic Chuck, SK 40, Projection: 120, Clamping Range: 4mm
Mfr # 302093 4
Zoro # G314773420
product price:Â
$
811.99
/ea
Free Shipping & Returns
Key Features
Shape
ADB
Taper Size
SK40
Standards
ISO 7388-1
Balluffchip Bore
Yes
Balance Quality
G 2.5 at 25,000 rpm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 302093 4
- Zoro #
- G314773420
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Taper Size
- SK40
- Outside Dia.
- 49.5 mm
- Clamping Dia.
- 4 mm
Details
- Shape
- ADB
- Standards
- ISO 7388-1
- Item
- Hydraulic clamping chuck
- Balluffchip Bore
- Yes
- Balance Quality
- G 2.5 at 25,000 rpm
- Projection
- 120 mm
- Concentricity
- ≤ 3 µm
Description
Extremely slim design Extra Slim contour Processed surface structure. With RFID/Balluffchip bore. Axial length adjustment possible. Shanks hard turned. Reducing adapters can be used. Application: Especially for tool and mould making. Wherever reduced interference contours are required. For drilling, reaming, and milling. For clamping tools with shank tolerance h6. Supplied with: Hexagon socket drive with T-handle. Optional extras: Pull studs AB No. 308600 308806, AB pull stud wrenches No. 308820 / 308835, Reducing adapters No. 302135 302187. Machining strategy: HSC Clamping Dia D1: 4 mm Overhang dimension A: 120 mm Dia D2: 10 mm Dia D3: 18.4 mm External Dia D: 49.5 mm L2: 80 mm
