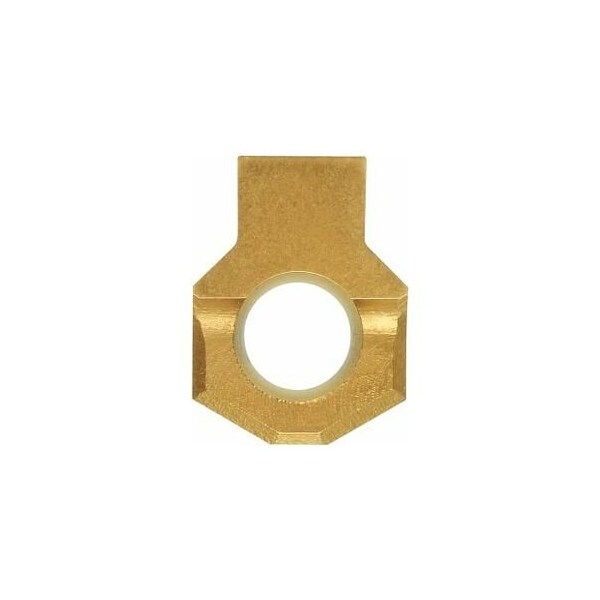

Slot Cutting Insert for Keyway Broaching Toolholder, D10, 16 mm
Mfr # 290376 16
Zoro # G314892183
product price:Â
$
95.75
/ea
Key Features
Coating
TiN
Blade Width
16.12 mm
For Precision Fit
D10
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 290376 16
- Zoro #
- G314892183
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Blade Width
- 16.12 mm
- For Slot Width
- 16 mm
Details
- Coating
- TiN
- For Precision Fit
- D10
Description
With TiN coating. Suitable for regrinding. Application: For producing slots according to DIN 6885, DIN 138 and factory standards. For slot widths with tolerance JS9, use cutter inserts with tolerance H7. Note: Special sizes slot widths available on request. Detailed application values can be found in our application ToolScout. From slot width 16 mm it is essential to perform two passes. The first pass must be performed for approx. half the slot width e.g. 10 mm for a desired slot width of 18 mm. Blade width w: 16.12 mm Groove depth t: 8 mm Tip thickness b: 14 mm
