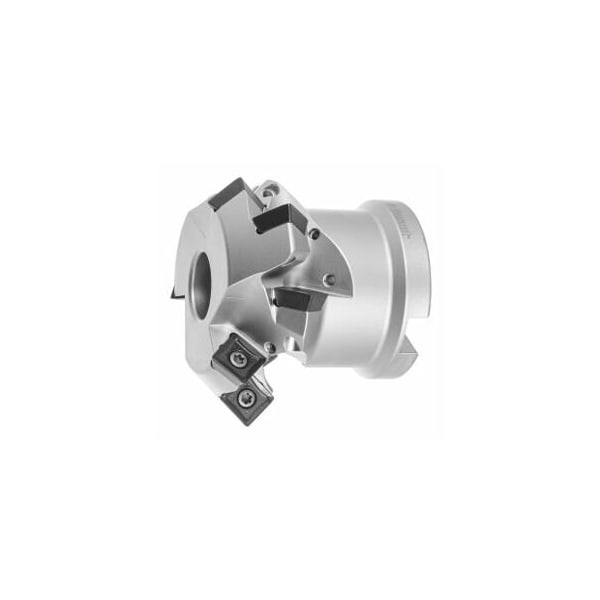

Softcut HSI 45 Degree Chamfer Mill, with Bore, 53.9mm - 85mm
- Mfr # 214851 53,9
- Zoro # G816115568
product price:Â
$
958.99
/ea
Free Shipping & Returns
Key Features
Overall Length
65 mm
Coolant Through
Yes
Insert Screw
219833 (15IP; 3.0 Nm)
Shank Type
With Bore
Series
Softcut®
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 214851 53,9
- Zoro #
- G816115568
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Overall Length
- 65 mm
- Large End Dia.
- 85 mm
- Achievable Chamfer Length
- 22 mm
- Achievable Chamfer Height
- 15 mm
- Mounting Bore Dia.
- 27 mm
- Shank Size
- 27
Details
- Item
- Indexable end mill
- Coolant Through
- Yes
- Insert Screw
- 219833 (15IP; 3.0 Nm)
- Shank Type
- With Bore
- Series
- Softcut®
- Number of Effective Inserts
- 3
- Number of Indexable Inserts
- 9
- Tool Exchange
- PowerCard
Description
Application: Suitable for front and back chamfering. Suitable for: Indexable inserts SO.T1205. Note: Use GARANT torque screwdriver TQ No. 211750 size 3.0 with bit No. 674252 size 15IP. Tool exchange: PowerCard Number of effective inserts Zeff: 3 Number of indexable inserts: 9 Overall length Ltot: 65 mm smallestD: 53.9 mm largestD1: 85 mm achievable chamfer length l: 22 mm
