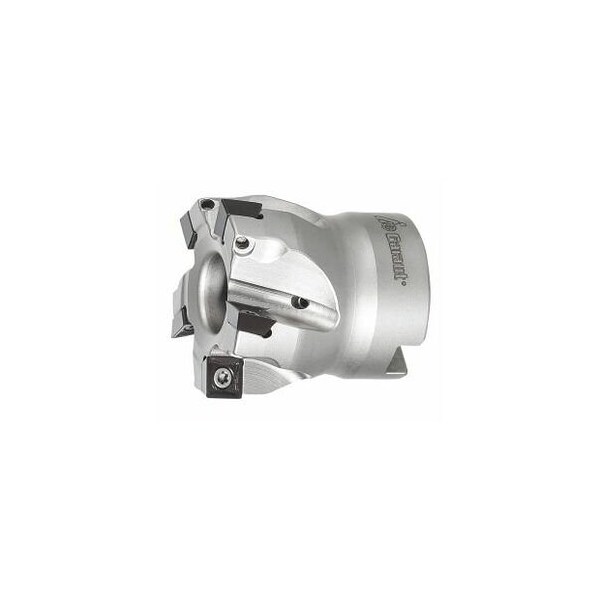

Softcut HSI Milling Cutter, Close Pitch, with Bore, 40mm Diameter, 5 Inserts
Mfr # 214908 40/5
Zoro # G216121091
product price:Â
$
570.99
/ea
Free Shipping & Returns
Key Features
Series
Softcut®
Cutting Angle
90°
Number of Teeth
5
Insert Screw
219863 (8IP; 2.2 Nm)
Cutting Dia.
40 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 214908 40/5
- Zoro #
- G216121091
- UPC #
- -
- Country of Origin
- Italy
- Item
- End / face mill
- Series
- Softcut®
- Cutting Angle
- 90°
- Number of Teeth
- 5
- Insert Screw
- 219863 (8IP; 2.2 Nm)
- Milling Application
- Corner milling
- Shank Type
- with bore
- Dia/No. of Cutting Edges
- 40 mm/5
- Coolant Through
- Yes
- Tool Exchange
- PowerCard
Description
Version: Wear-resistant heat-treated steel with corrosion-inhibiting coating. Precise indexable insert seating by use of appropriate torque. Wide and close tooth pitches for individual milling strategies. Application: Particularly suitable for machines with lower drive power and for machining at greater depths and small entry diameters. Note: To use all 4 cutting edges- the insert must always be turned in the direction shown anticlockwise. Use GARANT torque screwdriver TQ No. 211750 size 2.2 with bit No. 674252 size 8IP. For exact 90 deg. corners- select ap = 6 mm. Tool exchange: PowerCard maximum cutting depth ap max: 6 mm Overall length Ltot: 40 mm Mounting bore : 16 mm suitable indexable insert: SO.. 0836.. Pack of insert screws: 219863 8IP- 2.2 Nm
