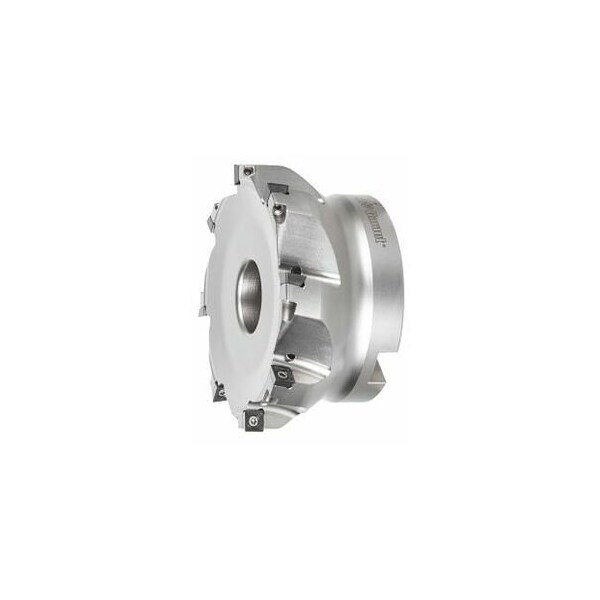

Softcut HSI Milling Cutter, Wide Pitch, with Bore, 100mm Diameter, 8 Inserts
Mfr # 214906 100/8
Zoro # G616121288
product price: $889.99
/ea
Free Shipping & Returns
Key Features
Series
Softcut®
Cutting Dia.
100 mm
Cutting Angle
90°
Insert Screw
219863 (8IP; 2.2 Nm)
Overall Length
50 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
214906 100/8
Zoro #
G616121288
UPC #
-
Country of Origin
Italy
Dimensions
Cutting Dia.
100 mm
Overall Length
50 mm
Mounting Bore Dia.
32 mm
Free length
50 mm
Max. Cutting Depth
6 mm
Details
Series
Softcut®
Cutting Angle
90°
Item
End / face mill
Insert Screw
219863 (8IP; 2.2 Nm)
Number of Teeth
8
Shank Type
with bore
Dia/No. of Cutting Edges
100 mm/8
Coolant Through
Yes
Tool Exchange
PowerCard
Milling Application
Corner milling
Description
Version: Wear-resistant heat-treated steel with corrosion-inhibiting coating. Precise indexable insert seating by use of appropriate torque. Wide and close tooth pitches for individual milling strategies. Application: Particularly suitable for machines with lower drive power and for machining at greater depths and small entry diameters. Note: To use all 4 cutting edges- the insert must always be turned in the direction shown anticlockwise. Use GARANT torque screwdriver TQ No. 211750 size 2.2 with bit No. 674252 size 8IP. For exact 90 deg. corners- select ap = 6 mm. Tool exchange: PowerCard maximum cutting depth ap max: 6 mm Overall length Ltot: 50 mm Mounting bore : 32 mm suitable indexable insert: SO.. 0836.. Pack of insert screws: 219863 8IP- 2.2 Nm
