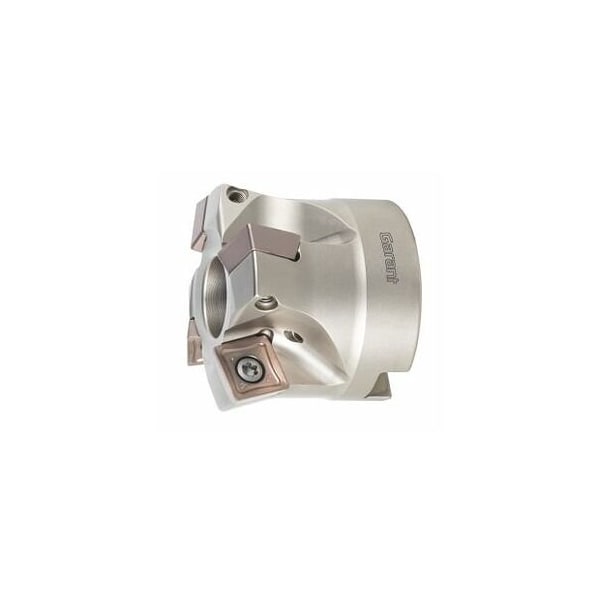

Softcut HSI Milling Cutter, with Bore, 63mm Diameter, 5 Inserts
Mfr # 214848 63/5
Zoro # G116121245
product price:Â
$
522.99
/ea
Free Shipping & Returns
Key Features
Series
Softcut®
Cutting Angle
15°
Insert Screw
219833 (15IP; 3Nm)
Cutting Dia.
63 mm
Number of Teeth
5
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 214848 63/5
- Zoro #
- G116121245
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Cutting Dia.
- 63 mm
- Overall Length
- 40 mm
- Max. Cutting Depth
- 2.8 mm
- Ramping Length for αmax
- 38 mm
- Mounting Bore Dia.
- 22 mm
- Diameter 3
- 40.4 mm
Details
- Item
- Face mill
- Series
- Softcut®
- Cutting Angle
- 15°
- Insert Screw
- 219833 (15IP; 3Nm)
- Number of Teeth
- 5
- Fz Helix
- 0.7
- Shank Type
- with bore
- Circular Interpolation Milling - Dmax
- 124.3 mm
- Axial Rake Angle
- 3°
- Ramping Angle
- 0.75 mm
- Circular Interpolation Milling - Dmin
- 102.3 mm
- Dia/No. of Cutting Edges
- 63 mm/5
- Tool Exchange
- PowerCard
- Coolant Through
- Yes
Description
Version: The indexable inserts are positioned at 15 deg. in the tool body. Application: Select fz value 0.8 mm. Note: Use GARANT torque screwdriver TQ No. 211750 size 3.0 with bit No. 674252 size 15IP. Tool exchange: PowerCard Number of cutting edges Z: 5D3: 40.4 mm maximum cutting depth ap max: 2.8 mm Overall length Ltot: 40 mm Mounting bore : 22 mm Circular interpolation millingDmin: 102.3 mm Circular interpolation millingDmax: 124.3 mm
