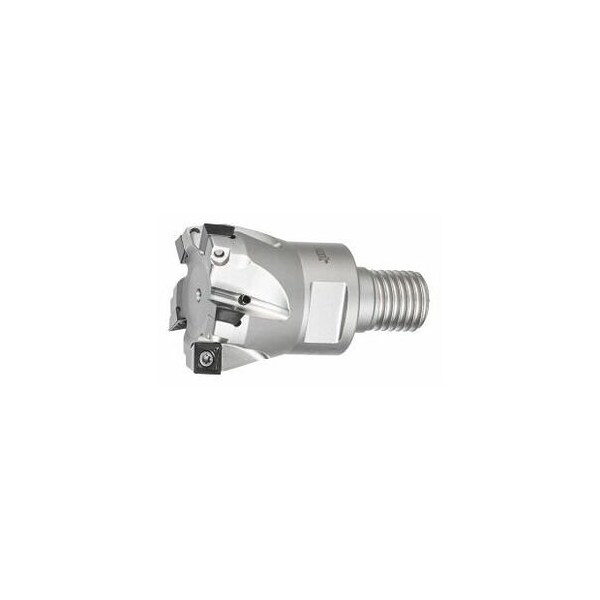

Softcut HSI Milling Cutter, with Threaded Shank, 40mm Diameter, 5 Inserts
Mfr # 214904 40/5
Zoro # G516121289
product price:Â $449.99
/ea
Free Shipping & Returns
Key Features
Series
Softcut®
Cutting Angle
90°
Cutting Dia.
40 mm
Insert Screw
219863 (8IP; 2.2 Nm)
Number of Teeth
5
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 214904 40/5
- Zoro #
- G516121289
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Cutting Dia.
- 40 mm
- Overall Length
- 40 mm
- Max. Cutting Depth
- 6 mm
- Free length
- 40 mm
- Diameter 1
- 17 mm
- Diameter 2
- 28.7 mm
- Shank Size
- M16
Details
- Item
- End / face mill
- Series
- Softcut®
- Cutting Angle
- 90°
- Insert Screw
- 219863 (8IP; 2.2 Nm)
- Number of Teeth
- 5
- Milling Application
- End milling
- Mounting Thread
- M16
- Tool Exchange
- PowerCard
- Dia/No. of Cutting Edges
- 40 mm/5
- Coolant Through
- Yes
- Shank Type
- With Threaded Shank
Description
Version: Wear-resistant heat-treated steel with corrosion-inhibiting coating. Precise indexable insert seating by use of appropriate torque. Wide and close tooth pitches for individual milling strategies. Application: Particularly suitable for machines with lower drive power and for machining at greater depths and small entry diameters. Note: To use all 4 cutting edges- the insert must always be turned in the direction shown anticlockwise. Use GARANT torque screwdriver TQ No. 211750 size 2.2 with bit No. 674252 size 8IP. For exact 90 deg. corners- select ap = 6 mm. Tool exchange: PowerCard maximum cutting depth ap max: 6 mm Overall length Ltot: 40 mmD1 h6: 17 mmD2: 28.7 mm Mounting thread M: M16 suitable indexable insert: SO.. 0836..
