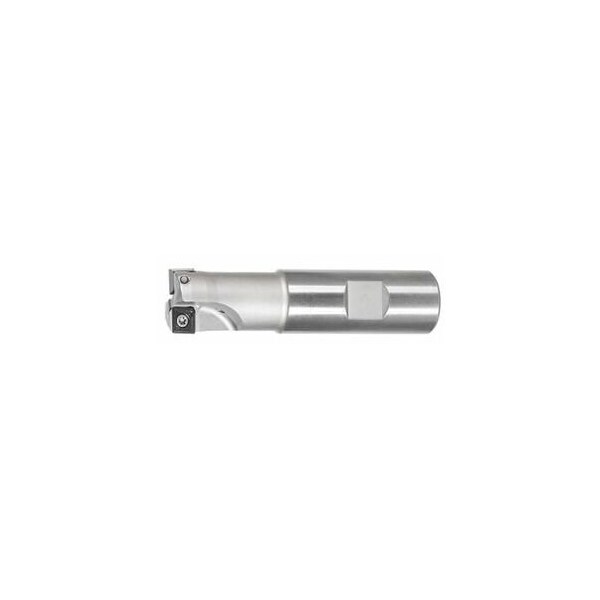

Softcut HSI Milling Cutter, with Weldon Flat, 20mm Diameter, 2 Inserts
Mfr # 214902 20/2
Zoro # G916121094
product price:Â $195.99
/ea
Free Shipping & Returns
Key Features
Series
Softcut®
Cutting Angle
90°
Cutting Dia.
20 mm
Shank Dia.
20 mm
Number of Teeth
2
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 214902 20/2
- Zoro #
- G916121094
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Cutting Dia.
- 20 mm
- Shank Dia.
- 20 mm
- Overall Length
- 85 mm
- Max. Cutting Depth
- 6 mm
Details
- Item
- End / face mill
- Series
- Softcut®
- Cutting Angle
- 90°
- Number of Teeth
- 2
- Insert Screw
- 219863 (8IP; 2.2 Nm)
- Milling Application
- Corner milling
- Dia/No. of Cutting Edges
- 20 mm/2
- Coolant Through
- Yes
- Overhang
- 35 mm
- Tool Exchange
- PowerCard
- Shank Type
- Weldon shank
Description
Version: Wear-resistant heat-treated steel with corrosion-inhibiting coating. Precise indexable insert seating by use of appropriate torque. Wide and close tooth pitches for individual milling strategies. Application: Particularly suitable for machines with lower drive power and for machining at greater depths and small entry diameters. Note: For exact 90 deg. corners- select ap = 6 mm. To use all 4 cutting edges- the insert must always be turned in the direction shown anticlockwise. Use GARANT torque screwdriver TQ No. 211750 size 2.2 with bit No. 674252 size 8IP. Tool exchange: PowerCard Cutting edgeDC: 20 mm Number of cutting edges Z: 2 maximum cutting depth ap max: 6 mm Overhang L1: 35 mm Overall length Ltot: 85 mm ShankDs h6: 20 mm
