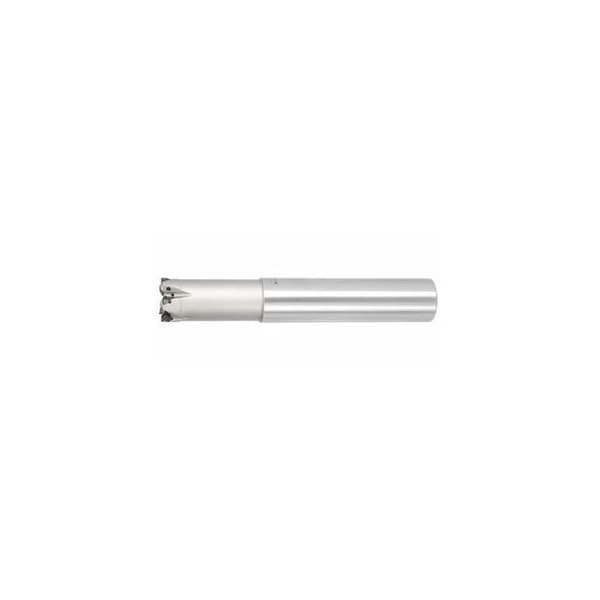

Softcut Square Shoulder Mill, with Plain Shank, 32mm Diameter, 5 Inserts
Mfr # 215177 32/5
Zoro # G716121201
product price:Â $524.99
/ea
Free Shipping & Returns
Key Features
Cutting Dia.
32 mm
Overall Length
195 mm
Insert Screw
219878 1 (7IP; 1.2 Nm)
Cutting Angle
90°
Shank Dia.
32 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 215177 32/5
- Zoro #
- G716121201
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Cutting Dia.
- 32 mm
- Overall Length
- 195 mm
- Shank Dia.
- 32 mm
- Max. Cutting Depth
- 2 mm
Details
- Item
- End / face mill
- Insert Screw
- 219878 1 (7IP; 1.2 Nm)
- Cutting Angle
- 90°
- Number of Teeth
- 5
- Coolant Through
- Yes
- Overhang
- 70 mm
- Shank Type
- Plain shank
- Tool Exchange
- PowerCard
- Milling Application
- End milling
- Dia/No. of Cutting Edges
- 32 mm/5
Description
Version: The corner milling system for stepless shoulder milling. The compact insert size ensures immense stability with an extra-high number of cutting edges - resulting in very high productivity. Note: Use GARANT torque screwdriver TQ No. 211750 size 1.2 with bit No. 674252 size 7IP. Tool exchange: PowerCard Cutting edgeDC: 32 mm Number of cutting edges Z: 5 maximum cutting depth ap max: 2 mm Overhang L1: 70 mm Overall length Ltot: 195 mm ShankDs h6: 32 mm
