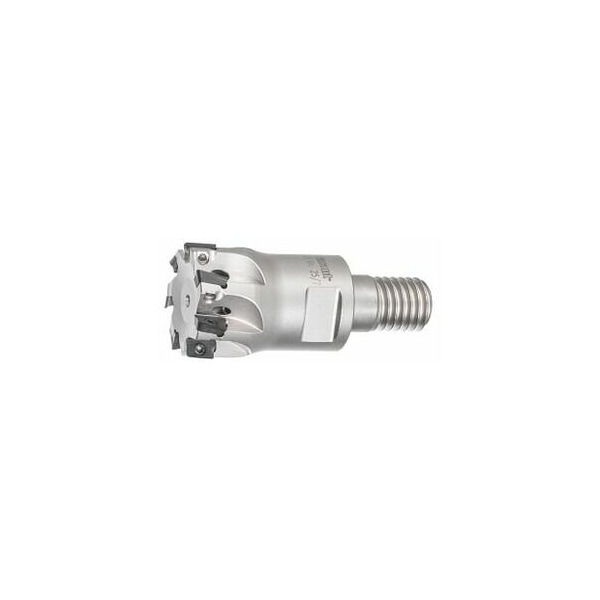

Softcut Square Shoulder Mill, with Threaded Shank, 25mm Diameter, 7 Inserts
- Mfr # 215615 25/7
- Zoro # G516121258
product price:Â
$
463.99
/ea
Free Shipping & Returns
Key Features
Series
Softcut®
Cutting Dia.
25 mm
Overall Length
35 mm
Insert Screw
219827 (6IP; 0.45 Nm)
Cutting Angle
90°
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 215615 25/7
- Zoro #
- G516121258
- UPC #
- -
- Country of Origin
- Italy
- Item
- End / face mill
- Series
- Softcut®
- Insert Screw
- 219827 (6IP; 0.45 Nm)
- Cutting Angle
- 90°
- Circular Interpolation Milling - Dmin
- 48 mm
- Mounting Thread
- M12
- Dia/No. of Cutting Edges
- 25 mm/7
- Circular Interpolation Milling - Dmax
- 48 mm
- Shank Type
- with threaded shank
- Number of Teeth
- 7
- Coolant Through
- Yes
- Tool Exchange
- PowerCard
- Ramping Angle
- 0.52°
- Axial Rake Angle
- 11°
- Circular interpolation milling ap
- 0.9 mm
- Fz Helix
- 0.5
Description
Version: High precision indexable shoulder mill with irregular pitch for very smooth cutting- very high precision and very high metal removal rate. New generation of high performance indexable shoulder mills with special geometry for reduced cutting forces for MTC applications under unstable conditions or for spindles with low drive power. Application: For shoulder milling to large depths- also slotting. General use in all steels including stainless and acid-resistant steels. Spare part: Pack of insert screws No. 219827 6IP- 0.45 Nm. Note: GARANT torque screwdriver TQ No. 211750 size 0.45- use bit No. 674252 size 6IP. The insert pocket must be modified when using indexable inserts with a radius of 2 mm. Overall length Ltot: 35 mmD1 h6: 12.5 mmD2: 20.7 mm Mounting thread M: M12 Circular interpolation millingDmin: 48 mm Circular interpolation millingDmax: 48 mm
