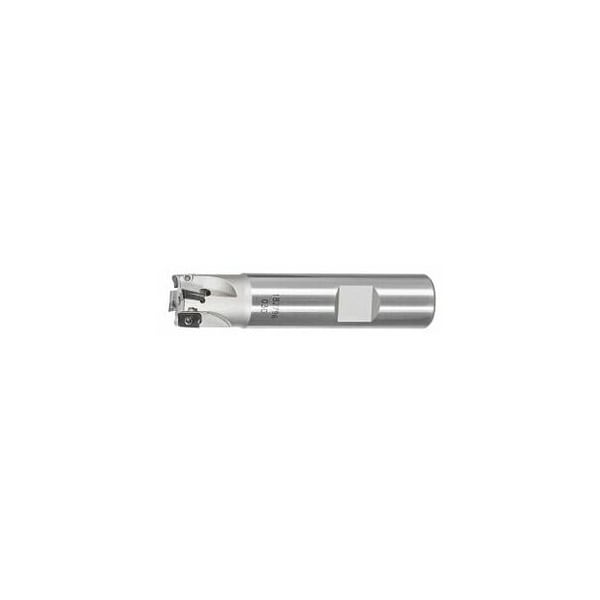

Softcut Square Shoulder Mill, with Weldon Flat, 16mm Diameter, 4 Inserts
Mfr # 215605 16/4
Zoro # G916121131
product price: $387.99
/ea
Free Shipping & Returns
Key Features
Series
Softcut®
Cutting Dia.
16 mm
Overall Length
75 mm
Cutting Angle
90°
Insert Screw
219827 (6IP; 0.45 Nm)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
215605 16/4
Zoro #
G916121131
UPC #
-
Country of Origin
Italy
Dimensions
Cutting Dia.
16 mm
Overall Length
75 mm
Shank Dia.
16 mm
Diameter 3
14 mm
Ramping Length for αmax
12.85 mm
Details
Item
End / face mill
Series
Softcut®
Cutting Angle
90°
Insert Screw
219827 (6IP; 0.45 Nm)
Overhang
20 mm
Coolant Through
Yes
Ramping Angle
0.89°
Dia/No. of Cutting Edges
16 mm/4
Shank Type
Weldon shank
Circular Interpolation Milling - Dmin
30 mm
Circular Interpolation Milling - Dmax
30 mm
Axial Rake Angle
11°
Fz Helix
0.5
Number of Teeth
4
Tool Exchange
PowerCard
Circular interpolation milling ap
0.9 mm
Description
Version: High precision indexable shoulder mill with irregular pitch for very smooth cutting- very high precision and very high metal removal rate. New generation of high performance indexable shoulder mills with special geometry for reduced cutting forces for MTC applications under unstable conditions or for spindles with low drive power. Suitable inserts APMT 0602.. Application: For shoulder milling to large depths- also slotting. General use in all steels including stainless and acid-resistant steels. Spare part: Pack of insert screws No. 219827 6IP- 0.45 Nm. Note: GARANT torque screwdriver TQ No. 211750 size 0.45- use bit No. 674252 size 6IP. The insert pocket must be modified when using indexable inserts with a radius of 2 mm. Cutting edgeDC: 16 mm Number of cutting edges Z: 4 Overhang L1: 20 mm Overall length Ltot: 75 mm ShankDs h6: 16 mm Circular interpolation millingDmin: 30 mm
