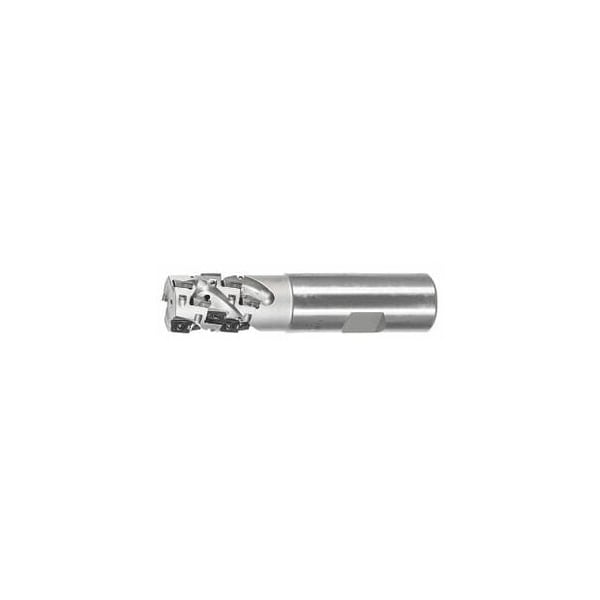

Softcut Square Shoulder Mill, with Weldon Flat, 20mm Diameter, 3 Effective Teeth

Version: High precision indexable shoulder mill with irregular pitch for very smooth cutting- very high precision and very high metal removal rate. New generation of high performance indexable shoulder mills with special geometry for reduced cutting forces for MTC applications under unstable conditions or for spindles with low drive power. Suitable inserts APMT 0602.. Application: For shoulder milling to large depths- also slotting. General use in all steels including stainless and acid-resistant steels. Spare part: Pack of insert screws No. 219827 6IP- 0.45 Nm. Note: GARANT torque screwdriver TQ No. 211750 size 0.45- use bit No. 674252 size 6IP. The insert pocket must be modified when using indexable inserts with a radius of 2 mm. Not for ramping or circular plunging! Tool exchange: PowerCard Number of effective inserts Zeff: 3 Number of indexable inserts: 15 maximum cutting depth ap max: 28 mm Overhang L1: 40 mm Overall length Ltot: 90 mm ShankDs h6: 20 mm
