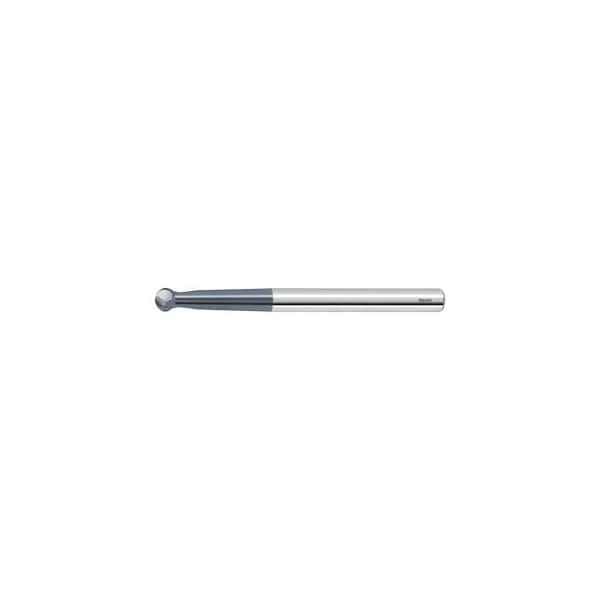

Solid Carbide Ball Nose End Mill, 220 Deg, TiAlN Coated, 2 mm
Mfr # 207175 2
Zoro # G214382289
product price: $153.99
/ea
Free Shipping & Returns
Key Features
Cutting Width Ae for Milling Operation
0.03×D for copy milling
Correction Factor Fz
1.25
Tolerance Nominal Diameter
f8
Feed Fz For Copy Milling in Steel < 1100 N/mm2
0.01 mm
Min. Cutting Depth
0.01 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
207175 2
Zoro #
G214382289
UPC #
-
Country of Origin
Germany
Dimensions
Cutting Width Ae for Milling Operation
0.03×D for copy milling
Tolerance Nominal Diameter
f8
Min. Cutting Depth
0.01 mm
Maximum Cutting Depth Ap Max When Side Milling
1.5 mm
Maximum Cutting Depth Ap Max When Copying
0.06 mm
Shank Dia.
6 mm
Length of Cut
1.5 mm
Neck Dia.
1.7 mm
Milling Diameter
2 mm
Overall Length
58 mm
Corner Radius
1 mm
Description
Exact radius form without profile distortion. Double relief ground side clearance angle. Tolerance: Radius contour = ±0.01 mm. With enclosed angle 220 Deg. Size nominal Dia. Dc = f8 Note: Straight ground recess. No. of teeth Z: 2 Helix angle: 30 degrees No. of teeth Z: 2 Cutter length lc: 1.5 mm Overhang length L1 incl. recess: 10 mm Recess Dia. D1: 1.7 mm Overall length L: 58 mm Shank Dia. Ds: 6 mm
