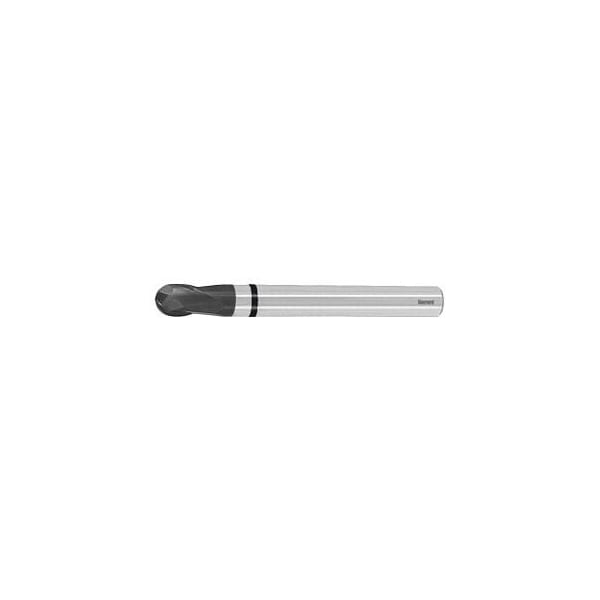

Solid Carbide Ball Nose End Mill, Diamond Coated, 3 mm
Mfr # 209781 3
Zoro # G614381806
product price: $99.89
/ea
Free Shipping & Returns
Key Features
Milling Diameter
3 mm
Overall Length
75 mm
Number of Flutes
2
End Mill Style
Ball
Finish
Diamond
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
209781 3
Zoro #
G614381806
UPC #
-
Country of Origin
Germany
Dimensions
Milling Diameter
3 mm
Overall Length
75 mm
Length of Cut
5 mm
Neck Dia.
2.9 mm
Corner Radius
1.5 mm
Shank Dia.
3 mm
Min. Cutting Depth
0.01 mm
Maximum Cutting Depth Ap Max When Copying
0.15 mm
Tolerance Nominal Diameter
f8
Maximum Cutting Depth Ap Max When Side Milling
5 mm
Description
With the latest generation of crystalline diamond coating sp3, for process reliability in machining Fiber-reinforced composites, CRP, GRP and graphite. Double relief ground side clearance angle. Tolerance: Radius contour = ±0.01 mm. No. of teeth Z: 2 Helix angle: 30 degrees No. of teeth Z: 2 Flute length Lc: 5 mm Overhang length L1 incl. recess: 33 mm Recess Dia. D1: 2.9 mm Overall length L: 75 mm Shank Dia. Ds: 3 mm
