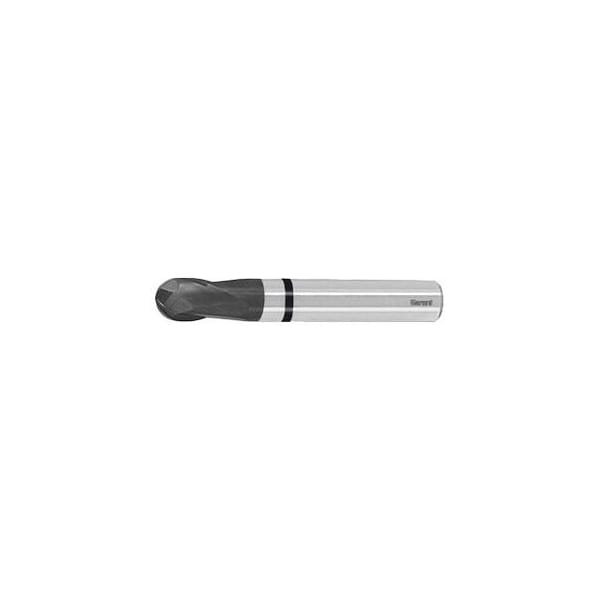

Solid Carbide Ball Nose End Mill, Diamond Coated, 4/6 mm
Mfr # 209776 4/6
Zoro # G514381005
product price: $97.35
/ea
Free Shipping & Returns
Key Features
Shank Dia.
6 mm
Length of Cut
8 mm
Overall Length
54 mm
End Mill Style
Ball
Finish
Diamond
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
209776 4/6
Zoro #
G514381005
UPC #
-
Country of Origin
Germany
Dimensions
Shank Dia.
6 mm
Length of Cut
8 mm
Overall Length
54 mm
Milling Diameter
4 mm
Neck Dia.
3.9 mm
Corner Radius
2 mm
Maximum Cutting Depth Ap Max When Copying
0.2 mm
Min. Cutting Depth
0.01 mm
Tolerance Nominal Diameter
f8
Maximum Cutting Depth Ap Max When Side Milling
8 mm
Description
With the latest generation of crystalline diamond coating sp3, for process reliability in machining Fiber-reinforced composites, CRP, GRP and graphite. Double relief ground side clearance angle. Tolerance: Radius contour = ±0.01 mm. No. of teeth Z: 2 Helix angle: 30 degrees No. of teeth Z: 2 Flute length Lc: 8 mm Overhang length L1 incl. recess: 12 mm Recess Dia. D1: 3.9 mm Overall length L: 54 mm Shank Dia. Ds: 6 mm
