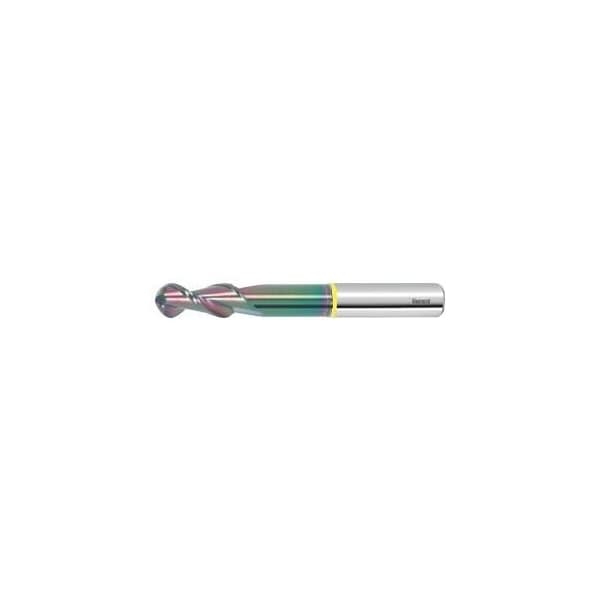

Solid Carbide Ball Nose End Mill, for Aluminum, DLC Coated, 12 mm
Mfr # 207072 12
Zoro # G214381237
product price: $237.99
/ea
Free Shipping & Returns
Key Features
Milling Diameter
12 mm
Overall Length
100 mm
Number of Flutes
2
End Mill Style
Ball
Finish
DLC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 207072 12
- Zoro #
- G214381237
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Milling Diameter
- 12 mm
- Overall Length
- 100 mm
- Length of Cut
- 26 mm
- Corner Radius
- 6 mm
- Shank Dia.
- 12 mm
- Neck Dia.
- 11.4 mm
- Maximum Cutting Depth Ap Max When Side Milling
- 26 mm
- Min. Cutting Depth
- 0.01 mm
- Tolerance Nominal Diameter
- f8
- Maximum Cutting Depth Ap Max When Copying
- 0.36 mm
- Cutting Width Ae for Milling Operation
- 0.03×D for copy milling
Description
With the latest generation of DLC coating sp2. Tolerances: Radius contour = ±0.01 mm. Note: Successor product to No. 207070. No. of teeth Z: 2 Helix angle: 45 degrees No. of teeth Z: 2 Flute length Lc: 26 mm Overhang length L1 incl. recess: 60 mm Recess Dia. D1: 11.4 mm Overall length L: 100 mm Shank Dia. Ds: 12 mm
