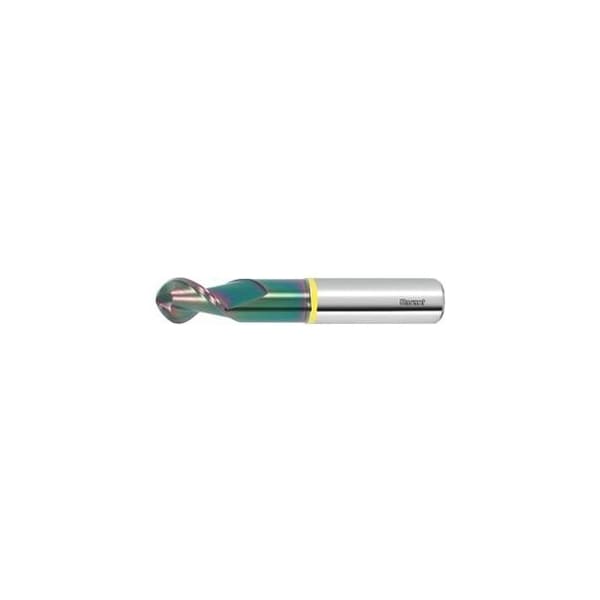

Solid Carbide Ball Nose End Mill, for Aluminum, DLC Coated, 5 mm
Mfr # 207032 5
Zoro # G614381165
product price: $77.15
/ea
Free Shipping & Returns
Key Features
Corner Radius
2.5 mm
End Mill Style
Ball
Shank Type
DIN 6535 HA to h6
Type
W
Helix Angle
45 Degrees
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
207032 5
Zoro #
G614381165
UPC #
-
Country of Origin
Germany
Dimensions
Corner Radius
2.5 mm
Milling Diameter
5 mm
Length of Cut
8 mm
Overall Length
54 mm
Shank Dia.
5 mm
Neck Dia.
4.6 mm
Maximum Cutting Depth Ap Max When Copying
0.15 mm
Maximum Cutting Depth Ap Max When Side Milling
8 mm
Cutting Width Ae for Milling Operation
0.03×D for copy milling
Tolerance Nominal Diameter
f8
Min. Cutting Depth
0.01 mm
Description
With the latest generation of DLC coating sp2. Tolerances: Radius contour = ±0.01 mm. Note: Successor product to No. 207030. No. of teeth Z: 2 Helix angle: 45 degrees No. of teeth Z: 2 Flute length Lc: 8 mm Overhang length L1 incl. recess: 18 mm Recess Dia. D1: 4.6 mm Overall length L: 54 mm Shank Dia. Ds: 5 mm
