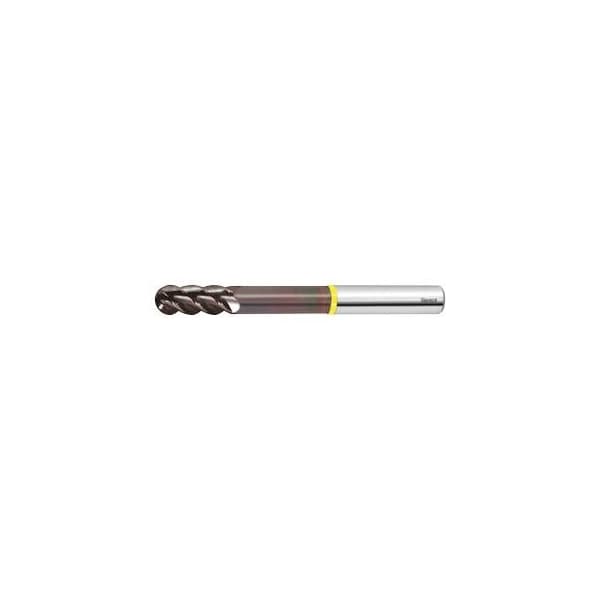

Solid Carbide Ball Nose End Mill, for Aluminum, DLC Coated, 5 mm
Mfr # 207443 5
Zoro # G314380796
product price: $103.99
/ea
Free Shipping & Returns
Key Features
Overall Length
75 mm
Milling Diameter
5 mm
Number of Flutes
4
End Mill Style
Ball
Finish
DLC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
207443 5
Zoro #
G314380796
UPC #
-
Country of Origin
Germany
Dimensions
Overall Length
75 mm
Milling Diameter
5 mm
Length of Cut
15 mm
Neck Dia.
4.6 mm
Corner Radius
2.5 mm
Shank Dia.
5 mm
Cutting Width Ae for Milling Operation
0.1×D for copy milling
Min. Cutting Depth
0.01 mm
Maximum Cutting Depth Ap Max When Copying
0.5 mm
Tolerance Nominal Diameter
f8
Maximum Cutting Depth Ap Max When Side Milling
15 mm
Description
With the latest generation of DLC coating sp2. For high-performance milling of aluminium materials. 4 Center cutting edges to the Center. Can therefore be used as a true 4-edge drill in all cutting depths, for hardened steel. Tolerance: Radius contour = ±0.005 mm. No. of teeth Z: 4 Helix angle: 45 degrees No. of teeth Z: 4 Flute length Lc: 15 mm Overhang length L1 incl. recess: 40 mm Recess Dia. D1: 4.6 mm Overall length L: 75 mm Shank Dia. Ds: 5 mm
