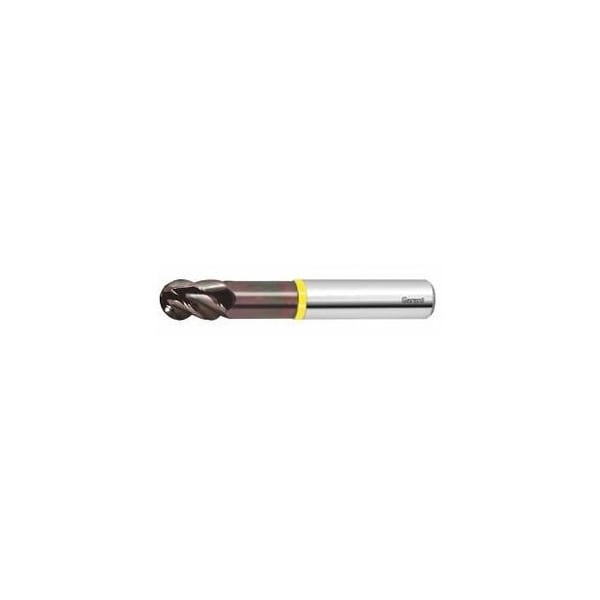

Solid Carbide Ball Nose End Mill, for Aluminum, DLC Coated, 8 mm
Mfr # 207441 8
Zoro # G814384973
product price:
$
115.99
/ea
Free Shipping & Returns
Key Features
Milling Diameter
8 mm
Overall Length
59 mm
Number of Flutes
4
End Mill Style
Ball
Finish
DLC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 207441 8
- Zoro #
- G814384973
- UPC #
- -
- Country of Origin
- Germany
- Number of Flutes
- 4
- End Mill Style
- Ball
- Finish
- DLC
- Shank Type
- DIN 6535 HA to h6
- Overall Reach
- 27 mm
- Type
- W
- Cutting Direction
- horizontal, oblique and vertical
- Coolant Through
- No
- End Mill Material
- Carbide
- Helix Angle
- 45 Degrees
- Shank Tolerance
- h6
- Correction Factor Fz
- 1.25
- Color Ring
- yellow
- Type of Product
- Ball-nosed slot drill
- Feed Fz For Copy Milling in Cast Aluminium
- 0.06 mm
Description
With the latest generation of DLC coating sp2. For high-performance milling of aluminium materials. 4 Center cutting edges to the Center. Therefore can be used as a true 4-edge drill at all depths of cut. Tolerance: Radius contour = ±0.005 mm. No. of teeth Z: 4 Helix angle: 45 degrees No. of teeth Z: 4 Flute length Lc: 12 mm Overhang length L1 incl. recess: 27 mm Recess Dia. D1: 7.5 mm Overall length L: 59 mm Shank Dia. Ds: 8 mm
