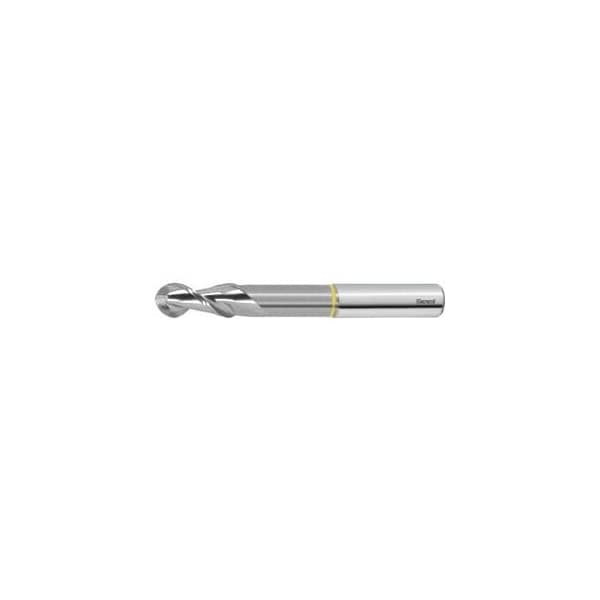

Solid Carbide Ball Nose End Mill, for Aluminum, Uncoated, 4 mm
Mfr # 207028 4
Zoro # G114381276
product price:Â $83.55
/eaKey Features
Milling Diameter
4 mm
Overall Length
75 mm
Number of Flutes
2
End Mill Style
Ball
Finish
uncoated
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 207028 4
- Zoro #
- G114381276
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Milling Diameter
- 4 mm
- Overall Length
- 75 mm
- Length of Cut
- 13 mm
- Corner Radius
- 2 mm
- Cutting Width Ae for Milling Operation
- 0.03×D for copy milling
- Tolerance Nominal Diameter
- f8
- Maximum Cutting Depth Ap Max When Copying
- 0.12 mm
- Neck Dia.
- 3.7 mm
- Shank Dia.
- 4 mm
- Maximum Cutting Depth Ap Max When Side Milling
- 13 mm
- Min. Cutting Depth
- 0.01 mm
Description
Additionally polish ground in the flutes for outstanding chip evacuation in long-chipping aluminium components. Dimensions similar to DIN 6527. No. of teeth Z: 2 Helix angle: 45 degrees No. of teeth Z: 2 Flute length Lc: 13 mm Overhang length L1 incl. recess: 36 mm Recess Dia. D1: 3.7 mm Overall length L: 75 mm Shank Dia. Ds: 4 mm
