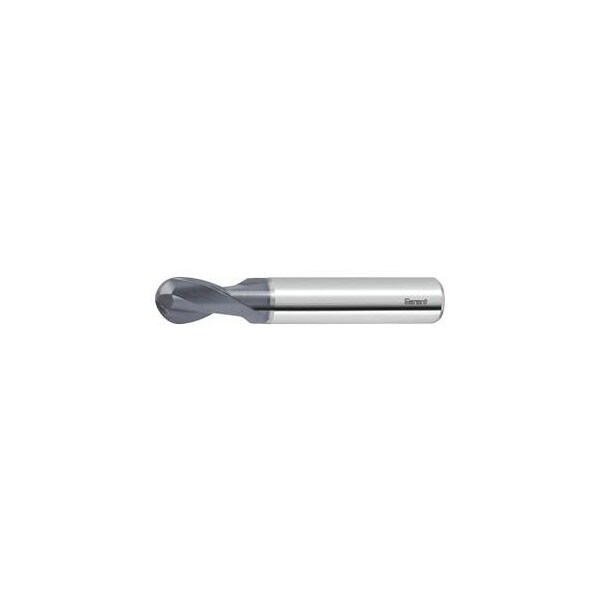

Solid Carbide Ball Nose End Mill, TiAlN Coated, 2 mm
Mfr # 207115 2
Zoro # G714381737
product price: $43.55
/eaKey Features
Overall Length
50 mm
Milling Diameter
2 mm
Number of Flutes
2
End Mill Style
Ball
Finish
TiAlN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
207115 2
Zoro #
G714381737
UPC #
-
Country of Origin
Austria
Dimensions
Overall Length
50 mm
Milling Diameter
2 mm
Length of Cut
2 mm
Shank Dia.
6 mm
Corner Radius
1 mm
Neck Dia.
1.92 mm
Maximum Cutting Depth Ap Max When Copying
0.1 mm
Maximum Cutting Depth Ap Max When Side Milling
2 mm
Min. Cutting Depth
0.01 mm
Tolerance Nominal Diameter
f8
Description
Solid carbide ball nose slot drill 2 mmNo. of teeth Z: 2 Helix angle: 30 degrees No. of teeth Z: 2 Flute length Lc: 2 mm Overhang length L1 incl. recess: 6 mm Recess Dia. D1: 1.92 mm Overall length L: 50 mm Shank Dia. Ds: 6 mm
