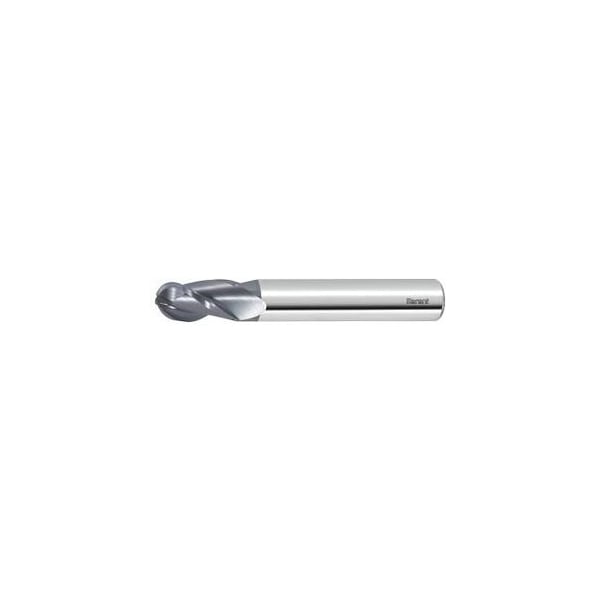

Solid Carbide Ball Nose End Mill, TiAlN Coated, 8 mm
Mfr # 207381 8
Zoro # G414385189
product price: $86.79
/ea
Free Shipping & Returns
Key Features
Type
N
Number of Flutes
3
End Mill Material
Carbide
Corner Radius
4 mm
Feed Fz For Copy Milling in Steel < 500 N/mm2
0.051 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
207381 8
Zoro #
G414385189
UPC #
-
Country of Origin
Austria
Dimensions
Corner Radius
4 mm
Maximum Cutting Depth Ap Max When Side Milling
16 mm
Tolerance Nominal Diameter
e8
Min. Cutting Depth
0.01 mm
Maximum Cutting Depth Ap Max When Copying
0.8 mm
Overall Length
63 mm
Length of Cut
16 mm
Milling Diameter
8 mm
Shank Dia.
8 mm
Details
Type
N
Number of Flutes
3
End Mill Material
Carbide
Feed Fz For Copy Milling in Steel < 500 N/mm2
0.051 mm
Shank Tolerance
h6
Feed Fz For Side Milling in Steel < 500 N/mm2
0.045 mm
Correction Factor Fz
1.25
Type of Product
Ball-nosed slot drill
Color Ring
without
Finish
TiAlN
Helix Angle
35 Degrees
Shank Type
DIN 6535 HA to h6
Coolant Through
No
Cutting Direction
horizontal, oblique and vertical
End Mill Style
Ball
Description
Tolerance: Radius contour = ±0.01 mm. No. of teeth Z: 3 Helix angle: 35 degrees No. of teeth Z: 3 Flute length Lc: 16 mm Overall length L: 63 mm Shank Dia. Ds: 8 mm Feed fz for side milling in steel < 500 N/mm2: 0.045 mm Feed fz for copy milling in steel < 500 N/mm2: 0.051 mm
