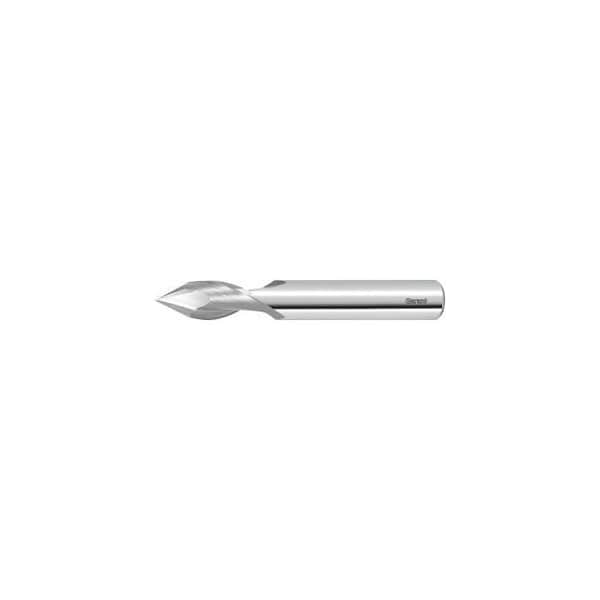

Solid Carbide Chamfer Mill, 60 Deg, Uncoated, 4 mm
Mfr # 208065 4
Zoro # G114423648
product price: $35.55
/eaKey Features
Material - Machining
Carbide
Finish - Machining
Uncoated
Shank Type - Machining
DIN 6535 HA with h6
Number of Flutes
2
Milling Dia.
4 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 208065 4
- Zoro #
- G114423648
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Milling Dia.
- 4 mm
- Length of Cut
- 11 mm
- Overall Length
- 57 mm
- Maximum Cutting Depth Ap Max When Side Milling
- 11 mm
- Cutting Width Ae for Milling Operation
- 0.5×D for side milling
- Tolerance Nominal Diameter
- e8
- Min. Cutting Depth
- 0.01 mm
- Maximum Cutting Depth Ap Max When Slot Milling From Solid
- 11 mm
- Shank Diameter
- 6 mm
- Cutter Width
- 2 mm
Description
Tolerance: Point angle ±1 Deg. Application: Countersinking Chamfering Note: For HB shanks use order No. 208068. HB shanks are available at the same price as HA. No. of teeth Z: 2 Shank: DIN 6535 HA with h6 Chamfer mill: 30 degrees No. of teeth Z: 2 Flute length Lc: 11 mm Overall length L: 57 mm Shank Dia. Ds: 6 mm Feed fz for side milling in steel < 900 N/mm2: 0.02 mm
