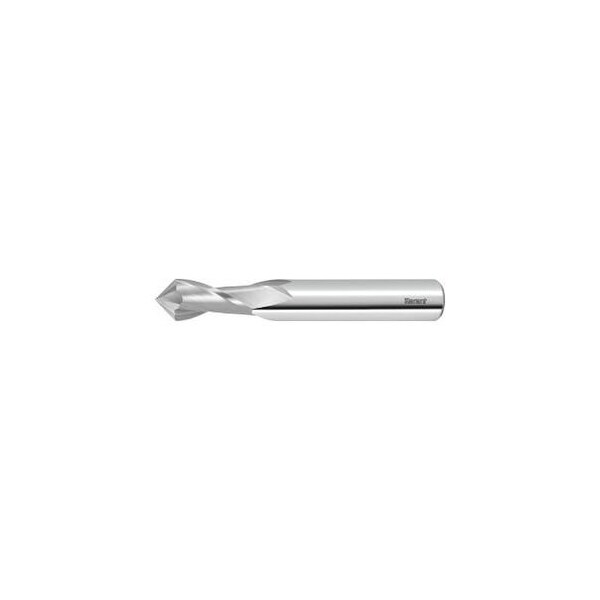

Solid Carbide Chamfer Mill, 90 Deg, Uncoated, 6 mm
Mfr # 208070 6
Zoro # G014423625
product price: $35.55
/eaKey Features
Maximum Cutting Depth Ap Max When Side Milling
13 mm
Cutting Width Ae for Milling Operation
0.5×D for side milling
Corner Chamfer Angle
45 Degrees
Helix Angle
30 Degrees
Correction Factor Fz
1.25
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
208070 6
Zoro #
G014423625
UPC #
-
Country of Origin
Germany
Dimensions
Maximum Cutting Depth Ap Max When Side Milling
13 mm
Cutting Width Ae for Milling Operation
0.5×D for side milling
Maximum Cutting Depth Ap Max When Slot Milling From Solid
13 mm
Tolerance Nominal Diameter
e8
Min. Cutting Depth
0.01 mm
Cutter Width
3 mm
Length of Cut
13 mm
Milling Dia.
6 mm
Overall Length
57 mm
Shank Diameter
6 mm
Description
Tolerance: Point angle ±1 Deg. Application: Slot milling Countersinking Milling Can also be used as a NC spotting drill. Note: For HB shanks use order No. 208071. HB shanks are available at the same price as HA. No. of teeth Z: 2 Shank: DIN 6535 HA to h6 Chamfer mill: 45 degrees No. of teeth Z: 2 Flute length Lc: 13 mm Overall length L: 57 mm Shank Dia. Ds: 6 mm Feed fz for side milling in steel < 900 N/mm2: 0.03 mm
