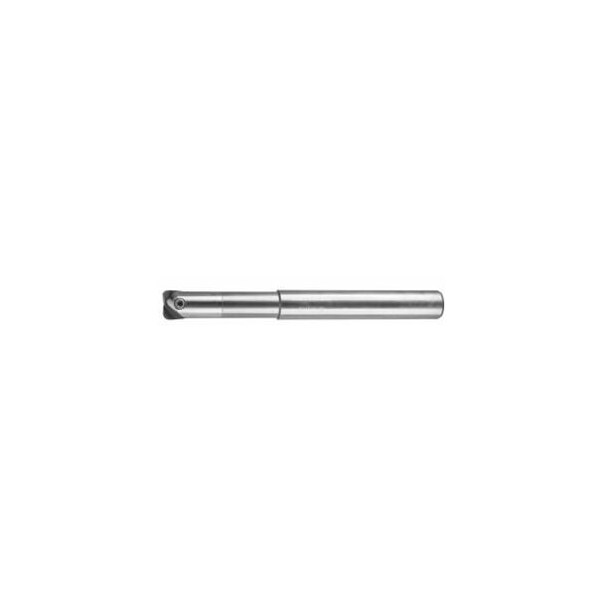

Solid Carbide Copy Mill, Extra Long, Plain Shank, 20mm Diameter
Mfr # 212592 20
Zoro # G516115486
product price: $1,550.99
/ea
Free Shipping & Returns
Key Features
Coolant Through
Yes
Shank Dia.
20 mm
Shank Type
Plain shank
Number of Teeth
2
Overhang
75 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
212592 20
Zoro #
G516115486
UPC #
-
Country of Origin
Germany
Dimensions
Overall Length
190 mm
Shank Dia.
20 mm
D1 Diameter
17.5 mm
Cutting Dia.
20 mm
Details
Coolant Through
Yes
Shank Type
Plain shank
Number of Teeth
2
Overhang
75 mm
Tool Exchange
PowerCard
Milling Application
Copy milling
Item
Copy mill
Dia
20 mm
Insert Screw
219874 (20IP; 5.0 Nm)
Description
Version: Exactly accurate insert bedding due to optimised design of insert and insert seat tolerances. Highest interchange accuracy : ± 0.015 mm. Application: General use for finishing and semi-finishing operations. Solid carbide - for large depths of cut and to minimise vibration. Note: Calculate the speed based on the effectiveDw. Use GARANT torque screwdriver TQ No. 211750 size 5.0 with bit No. 674252 size 20IP. Tool exchange: PowerCard Through-coolant: yes Number of cutting edges Z: 2 Overhang L1: 75 mm Overall length Ltot: 190 mmd1: 17.5 mm ShankDs h6: 20 mm Insert screw: 219874 20IP- 5.0 Nm
