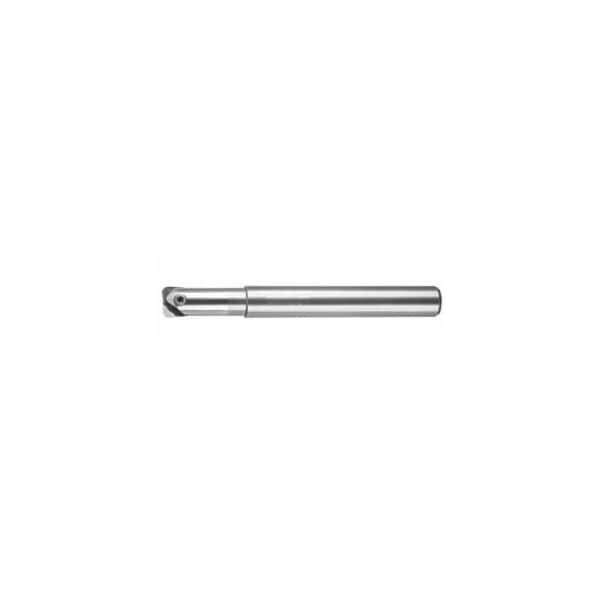

Solid Carbide Copy Mill, Long, Plain Shank, 16mm Diameter
Mfr # 212590 16
Zoro # G516115479
product price: $1,084.99
/ea
Free Shipping & Returns
Key Features
Coolant Through
Yes
Shank Dia.
16 mm
Shank Type
Plain shank
Tool Exchange
PowerCard
Overhang
40 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
212590 16
Zoro #
G516115479
UPC #
-
Country of Origin
Germany
Dimensions
Overall Length
140 mm
Shank Dia.
16 mm
D1 Diameter
14 mm
Cutting Dia.
16 mm
Details
Coolant Through
Yes
Shank Type
Plain shank
Dia
16 mm
Tool Exchange
PowerCard
Item
Copy mill
Overhang
40 mm
Number of Teeth
2
Milling Application
Copy milling
Insert Screw
219873 (15IP; 3.0 Nm)
Description
Version: Exactly accurate insert bedding due to optimised design of insert and insert seat tolerances. Highest interchange accuracy : ± 0.015 mm. Application: General use for finishing and semi-finishing operations. Solid carbide - for large depths of cut and to minimise vibration. Note: Calculate the speed based on the effectiveDw. Use GARANT torque screwdriver TQ No. 211750 size 3.0 with bit No. 674252 size 15IP. Tool exchange: PowerCard Through-coolant: yes Number of cutting edges Z: 2 Overhang L1: 40 mm Overall length Ltot: 140 mmd1: 14 mm ShankDs h6: 16 mm Insert screw: 219873 15IP- 3.0 Nm
