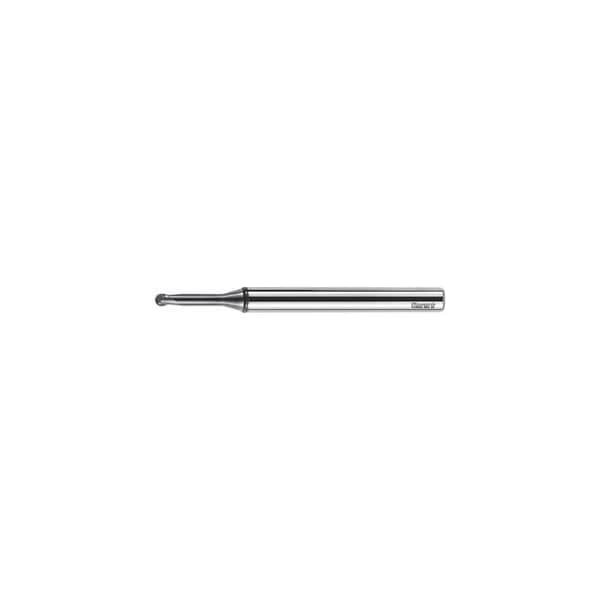

Solid Carbide Copy Slot Drill, Diamond Coated, 2 x 30 mm
Mfr # 209791 2X30
Zoro # G014382007
product price:Â $102.99
/ea
Free Shipping & Returns
Key Features
Milling Diameter
2 mm
Overall Length
70 mm
Number of Flutes
2
End Mill Style
Ball
Finish
Diamond
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- 209791 2X30
- Zoro #
- G014382007
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Milling Diameter
- 2 mm
- Overall Length
- 70 mm
- Length of Cut
- 1.6 mm
- Shank Dia.
- 4 mm
- Neck Dia.
- 1.94 mm
- Corner Radius
- 1 mm
- Cutting Width Ae for Milling Operation
- 0.05×D for copy milling
- Maximum Cutting Depth Ap Max When Copying
- 0.06 mm
- Tolerance Nominal Diameter
- 0 / -0.005
- Min. Cutting Depth
- 0.1 mm
Details
- Number of Flutes
- 2
- End Mill Style
- Ball
- Finish
- Diamond
- Coolant Through
- No
- End Mill Material
- Carbide
- Overall Reach
- 30 mm
- Shank Type
- DIN 6535 HA to h5
- Helix Angle
- 30 Degrees
- Cutting Direction
- horizontal, oblique and vertical
- Color Ring
- black
- Feed Fz For Copy Milling in Graphite
- 0.03 mm
- Correction Factor Fz
- 1
- Correction Factor Ap Corr
- 0.2
- Type of Product
- Ball-nosed slot drill
Description
With crystalline diamond sp3 coating. For the highest demands regarding performance and precision in Fiber-reinforced composites, CRP, GRP, and graphite. Extremely tight tolerances ensure maximum accuracy. Double relief ground with 2 hollow-ground chamfers. Recess angle a = 16 Deg. Tolerances: Corner radius: Radius contour 0 / -0.005 mm. Neck Dia. D1 = 0 / -0.01 mm. Note: At greater tool overhang lengths, use a reduced value for ap! values for: copying: ap = 0.15xDxap korr To calculate the feed rate vf please use the actual speed of the machine the maximum possible speed! e.g: vf = 18000 rpmx fz mm/Zx z No. of teeth Z: 2 Helix angle: 30 degrees No. of teeth Z: 2 Flute length Lc: 1.6 mm Corner radius R1: 1 mm Overhang length L1 incl. recess: 30 mm Recess Dia. D1: 1.94 mm Overall length L: 70 mm
