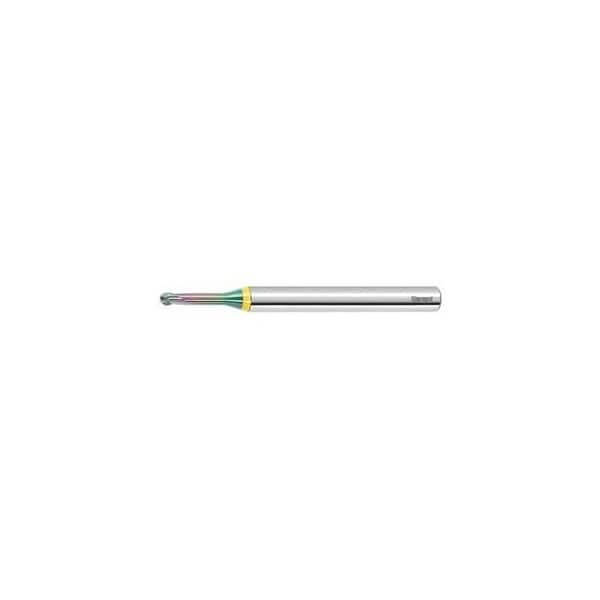

Solid Carbide Copy Slot Drill, for Aluminum, DLC Coated, 0.2X2 mm
Mfr # 207023 0,2X2
Zoro # G414384403
product price: $94.99
/ea
Free Shipping & Returns
Key Features
Length of Cut
0.16 mm
Number of Flutes
2
Type
W
Shank Dia.
4 mm
Helix Angle
25 Degrees
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
207023 0,2X2
Zoro #
G414384403
UPC #
-
Country of Origin
Germany
Dimensions
Length of Cut
0.16 mm
Shank Dia.
4 mm
Overall Length
45 mm
Corner Radius
0.1 mm
Milling Diameter
0.2 mm
Neck Dia.
0.17 mm
Cutting Width Ae for Milling Operation
0.05×D for copy milling
Min. Cutting Depth
0.005 mm
Tolerance Nominal Diameter
0 / -0.005
Maximum Cutting Depth Ap Max When Copying
0.025 mm
Description
With advanced DLC sp2 coating. For the highest demands regarding performance and precision in aluminium materials. Extremely tight tolerances ensure maximum accuracy. Double-relief ground with 2 chamfers hollow ground. Recess angle a = 16 Deg. Tolerances: Corner radius: Radius contour = 0 / -0.005 mm. Neck Dia. D1 = 0 / -0.01 mm. Note: At greater tool overhang lengths, use a reduced value for ap! values for: copying: ap = 0.25xDxap korr To calculate the feed rate vf please use the actual speed of the machine the maximum possible speed! e.g: vf = 18000 rpmx fz mm/Zx z No. of teeth Z: 2 Helix angle: 25 degrees No. of teeth Z: 2 Flute length Lc: 0.16 mm Corner radius R1: 0.1 mm Overhang length L1 incl. recess: 2 mm Recess Dia. D1: 0.17 mm Overall length L: 45 mm
