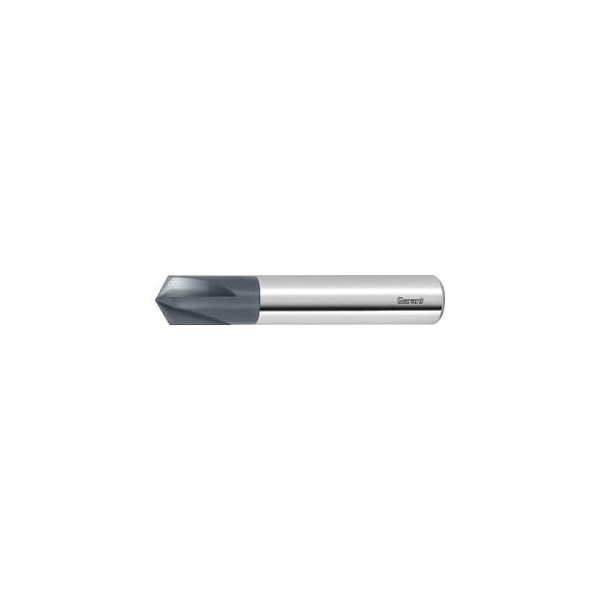

Solid Carbide Deburring Mill, 120 Deg, TiAlN Coated, 2 mm
Mfr # 208092 2
Zoro # G514423330
product price: $34.39
/eaKey Features
Type
N
Material
Carbide
Dia. (In.)
0.0787
Shank Diameter
3 mm
Overall Length
50 mm
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- 208092 2
- Zoro #
- G514423330
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Dia. (In.)
- 0.0787
- Shank Diameter
- 3 mm
- Overall Length
- 50 mm
- Maximum Cutting Depth Ap Max When Slot Milling From Solid
- 0.6 mm
- Tolerance Nominal Diameter
- h6
- Maximum Cutting Depth Ap Max When Side Milling
- 0.6 mm
- Min. Cutting Depth
- 0.01 mm
- Dimension S
- 1.1 mm
Description
Tolerance: Dimension S = ±0.1 mm, point angle ±10 arc minutes. With special flute geometry for smooth cutting. Application: Perfectly suitable for chamfering and deburring component edges and for contouring applications. No. of teeth Z: 3 Shank: DIN 6535 HA with h6 Chamfer mill: 60 degrees No. of teeth Z: 3 Dimension S: 1.1 mm Overall length L: 50 mm Shank Dia. Ds: 3 mm Feed fz in steel < 900 N/mm2: 0.01 mm
