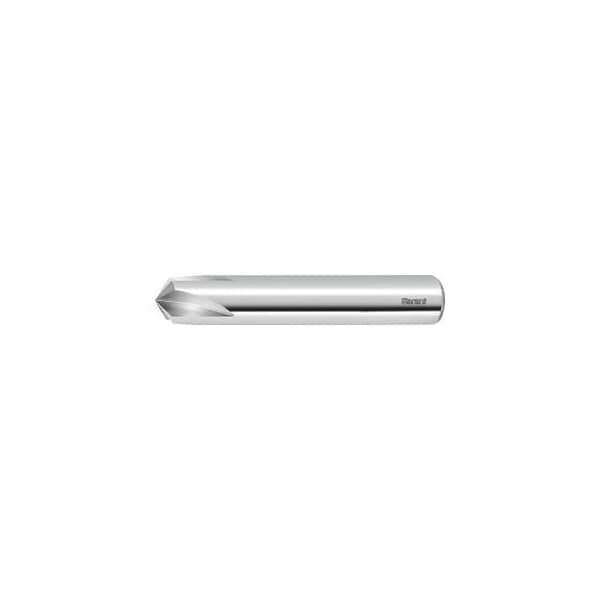

Solid Carbide Deburring Mill, 120 Deg, Uncoated, 10 mm
Mfr # 208090 10
Zoro # G314423448
product price:
$
73.49
/ea
Key Features
Type
N
Material
Carbide
Dia. (In.)
0.3937
Shank Diameter
10 mm
Overall Length
72 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 208090 10
- Zoro #
- G314423448
- UPC #
- -
- Country of Origin
- Germany
- Type
- N
- Material
- Carbide
- Tip Angle
- 120 deg
- Finish
- Uncoated
- Shank
- DIN 6535 HA with h6
- Feed Fz in Steel < 900 N/mm2
- 0.05 mm
- Chamfer Mill
- 60 Degrees
- Coolant Through
- no
- Shank Tolerance
- h6
- Color Ring
- without
- Direction of infeed
- horizontal and oblique
- Correction Factor Fz
- 1.25
- Corner Chamfer Angle
- 30 Degrees
- Type of Product
- Deburrers
- End Mill Style
- Drill Point
- Flutes
- 4
- Feed Fz in Steel < 900 N/mm2
- 0.05 mm
Description
Tolerance: Dimension S = ±0.1 mm, point angle ±10 arc minutes. With special flute geometry for smooth cutting. Application: Perfectly suitable for chamfering and deburring component edges and for contouring applications. No. of teeth Z: 4 Shank: DIN 6535 HA with h6 Chamfer mill: 60 degrees No. of teeth Z: 4 Dimension S: 5.5 mm Overall length L: 72 mm Shank Dia. Ds: 10 mm Feed fz in steel < 900 N/mm2: 0.05 mm
