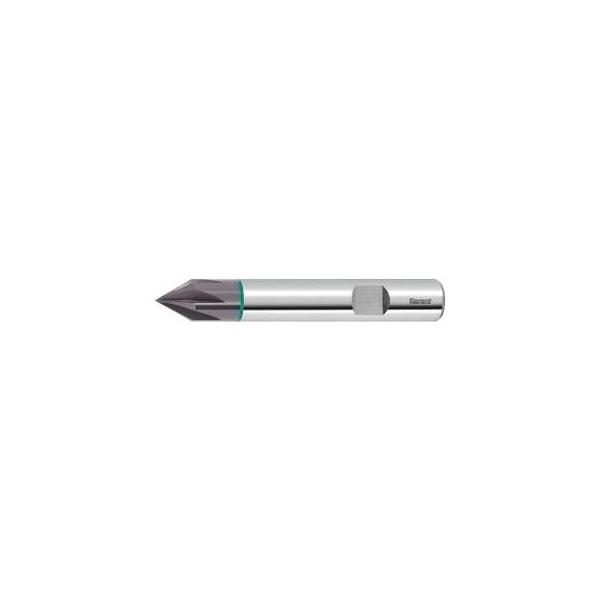

Solid Carbide Deburring Mill, 60 Deg, TiAlN Coated, 8 mm
- Mfr # 208168 8
- Zoro # G414423577
product price:
$
64.85
/ea
Key Features
Type
N
Material
Carbide
Dia. (In.)
8 mm
Shank Diameter
8 mm
Overall Length
63 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 208168 8
- Zoro #
- G414423577
- UPC #
- -
- Country of Origin
- Germany
- Type
- N
- Material
- Carbide
- Tip Angle
- 60 Degrees
- Finish
- TiAlN
- Chamfer Mill
- 30 Degrees
- Feed Fz in Steel < 900 N/mm2
- 0.04 mm
- Color Ring
- green
- Type of Product
- Deburrers
- Coolant Through
- no
- Correction Factor Fz
- 1.25
- Corner Chamfer Angle
- 30 Degrees
- Flutes
- 6
- Shank Tolerance
- h6
- Direction of infeed
- horizontal and oblique
- Shank
- DIN 6535 HB to h6
- End Mill Style
- Drill Point
- Feed Fz in Steel < 900 N/mm2
- 0.04 mm
Dimensions
- Dia. (In.)
- 8 mm
- Shank Diameter
- 8 mm
- Overall Length
- 63 mm
- Dimension S
- 7.9 mm
- Min. Cutting Depth
- 0.01 mm
- Maximum Cutting Depth Ap Max When Slot Milling From Solid
- 7.9 mm
- Maximum Cutting Depth Ap Max When Side Milling
- 7.9 mm
- Tolerance Nominal Diameter
- h6
Description
With special flute geometry, smooth cutting. Tolerance: Dimension S = ± 0.2 mm. Application: Perfectly suitable for chamfering and deburring component edges and for contouring applications. No. of teeth Z: 6 Shank: DIN 6535 HB to h6 Chamfer mill: 30 degrees No. of teeth Z: 6 Dimension S: 7.9 mm Overall length L: 63 mm Shank Dia. Ds: 8 mm Feed fz in steel < 900 N/mm2: 0.04 mm
